| Onderdeel nommer | LTY400WS-L02 |
| Handelsmerk | Samsung |
| Grootte | 40 |
| Toepassing | LCTV |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 530 |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | S-LCD |

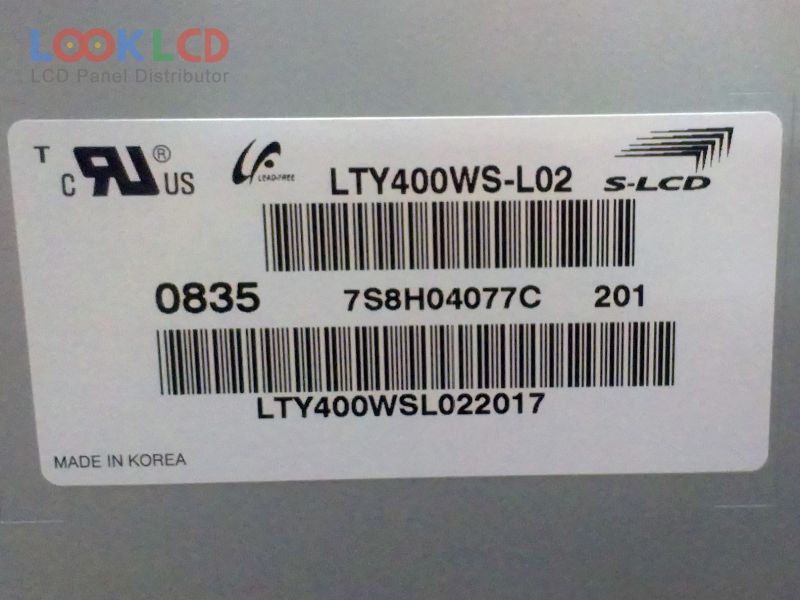

| paneel model | LTY400WS-L02 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 40 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | S-PVA, Normally Black, Transmissive |
| aktiewe area | 885.168×497.664 mm |
| buitelyn | 952×551×52 mm |
| oppervlak | Antiglare (Haze 44%), Hard coating (3H) |
| helderheid | 530 cd/m² (Typ.) |
| kontras verhouding | 1200:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 20 pcsCCFLEmbedded (Inverter) |
| sein koppelvlak | LVDS (1 ch, 8-bit), 41 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | LCTV |
| LTY400HA01 | Samsung | 40 | 1920×1080 |
| LTY400HC01 | Samsung | 40 | 1920×1080 |
| LTY400HC02 | Samsung | 40 | 1920×1080 |
| LTY400HF06 | Samsung | 40 | 1920×1080 |
| LTY400HL03 | Samsung | 40 | 1920×1080 |
| LTY400HM09 | Samsung | 40 | 1920×1080 |
| LTY400HM10 | Samsung | 40 | 1920×1080 |
| LTY400WS-L02 | Samsung | 40 | 1366×768 |
| V400HK2-LS5 | Innolux | 40 | 1920×1080 |
| LC420DUE-SFR3 | LG Display | 42 | 1920×1080 |
| LC550WUD-SBM4 | LG Display | 55 | 1920×1080 |
| LTA185AT01 | Samsung | 18.5 | 1366×768 |
| LTA230AP01 | Samsung | 23.0 | 1366×768 |
| LTA400HH-L02 | Samsung | 40 | 1920×1080 |
| MT5461D01-3 | CSOT | 55 | 3840×2160 |
| T260XW04 V7 | AUO | 26.0 | 1366×768 |
| T420HVF04.0 | AUO | 42 | 1920×1080 |
| V470H1-L08 | Innolux | 47 | 1920×1080 |
| V580DJ2-QS5 | Innolux | 58 | 3840×2160 |
