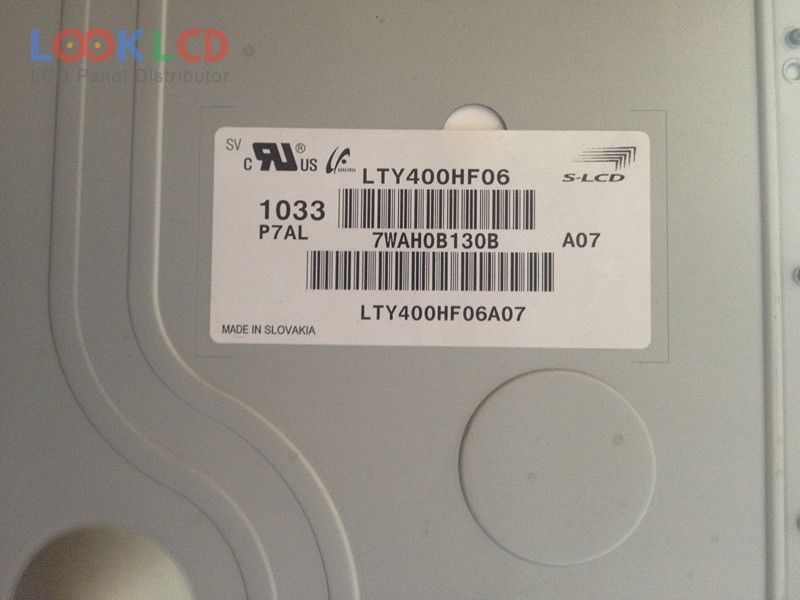

| Onderdeel nommer | LTY400HF06 |
| Handelsmerk | Samsung |
| Grootte | 40 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 400 |
| CR | 5000:1 |
| Kleure | 1.07B |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTY400HF06 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 40 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | S-PVA, Normally Black, Transmissive |
| aktiewe area | 885.6×498.15 mm |
| buitelyn | 952×551×61.2 mm |
| oppervlak | Antiglare (Haze 4.5%), Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 5000:1 (Typ.) |
| kleure vertoon | 1.07B (8-bit + Hi-FRC), CIE193172% |
| reaksie tyd | 12/6 (Typ.)(Tr/Td); 6.5 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| tipe lamp | 10 pcsCCFLEmbedded (Inverter) |
| sein koppelvlak | LVDS (2 ch, 10-bit), 55 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
