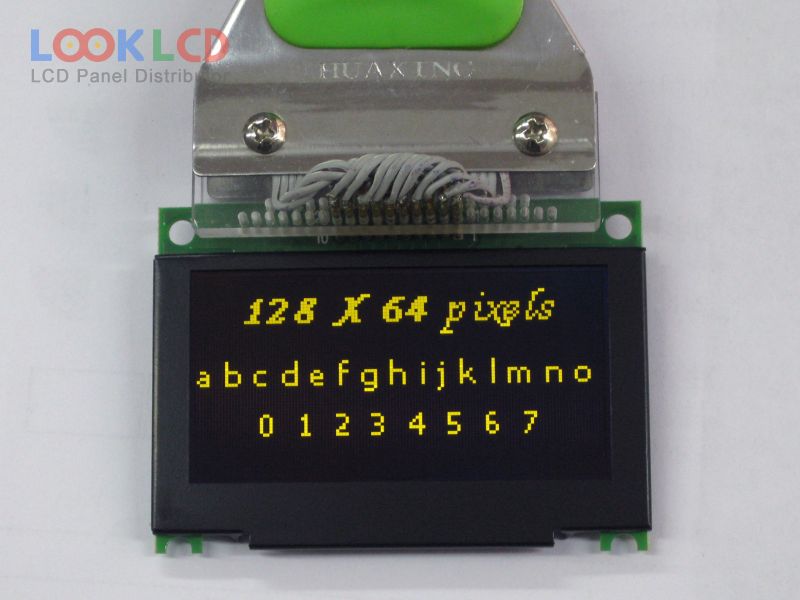

| Onderdeel nommer | HGS128645-Y-EH-LV |
| Handelsmerk | Other |
| Grootte | 2.7 |
| Toepassing | IA |
| Resolusie | 128×64 |
| Samestelling | OLED |
| Helderheid | 100 |
| CR | 2000:1 |
| Kleure | Mono(Yellow) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | TSINGTEK |
| paneel model | HGS128645-Y-EH-LV |
| paneel tipe | PM-OLED , OLED |
| paneel grootte | 2.7 inch |
| resolusie | 128×64 |
| aktiewe area | 61.41×30.69 mm |
| buitelyn | 75×53.5×7 mm |
| oppervlak | |
| helderheid | 100 cd/m² (Typ.) |
| kontras verhouding | 2000 : 1 (Min.) |
| kleure vertoon | Mono(Yellow) |
| kykhoek | 80/80/80/80 (Min.)(L/R/U/D) |
| bestuurder ic | Built-in SSD1325 |
| sein koppelvlak | 8-bit 6800/8080 parallel, SPI, 20 pins |
| insetspanning | 3.3V (Typ.) |
| rohs: | |
| aansoek | IA |
| A027DN03 V1 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A027DTN01.2 | AUO | 2.7 | 320×240 |
| HGS128641-Y-EH-LV | Other | 2.7 | 128×64 |
| HGS128645-Y-EH-LV | Other | 2.7 | 128×64 |
| HGS128647-Y-EH-LV | Other | 1.54 | 128×64 |
| OEL9M5001-Y-E | Other | 2.7 | 128×64 |
| OEL9M5003-W-E | Other | 2.7 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
| AA104SG01 | Mitsubishi | 10.4 | 800×600 |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| EL320.240.36 HB | Lumineq | 5.7 | 320×240 |
| EL640.480-AG1 | Lumineq | 8.1 | 640×480 |
| G185HAN01.0 | AUO | 18.5 | 1920×1080 |
| KG057QV1CA-G00 | Kyocera | 5.7 | 320×240 |
| KL6448USTS-FFW | Kyocera | 6.9 | 640×480 |
| LM8V302H | SHARP | 7.7 | 640×480 |
| NL8060BC31-42D | NLT | 12.1 | 800×600 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
