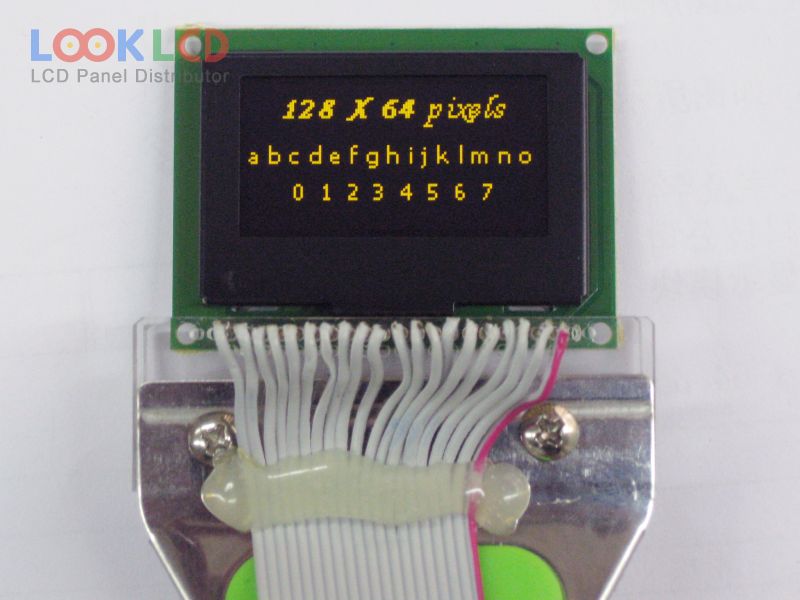

HGS128647-Y-EH-LV

HGS128647-Y-EH-LV
HGS128647-Y-EH-LV thumb
Handelsmerk
Other
Grootte
1.54
Toepassing
IA
Resolusie
128×64
Samestelling
OLED
Helderheid
150
CR
2000:1
Kleure
Mono(Yellow)
Agterlig
self
Koppelvlak
CPU/SPI/I²C
In Stock
13674
Spesifikasies

Onderdeel nommer HGS128647-Y-EH-LV
HandelsmerkOther
Grootte1.54
ToepassingIA
Resolusie128×64
SamestellingOLED
Helderheid150
CR2000:1
KleureMono(Yellow)
Agterligself
KoppelvlakCPU/SPI/I²C
paneel handelsmerkTSINGTEK
paneel modelHGS128647-Y-EH-LV
paneel tipe PM-OLED , OLED
paneel grootte1.54 inch
resolusie128×64
aktiewe area35.056×17.52 mm
buitelyn54×39.5×8.5 mm
oppervlak
helderheid150 cd/m² (Typ.)
kontras verhouding2000 : 1 (Min.)
kleure vertoonMono(Yellow)
kykhoek80/80/80/80 (Min.)(L/R/U/D)
bestuurder icBuilt-in SSD1305
sein koppelvlak8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins
insetspanning3.3V (Typ.)
rohs:
aansoekIA
