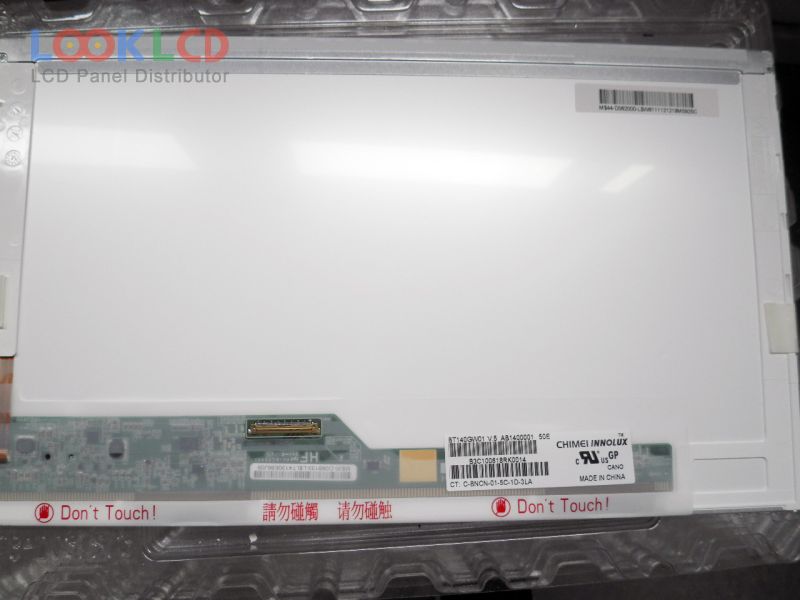

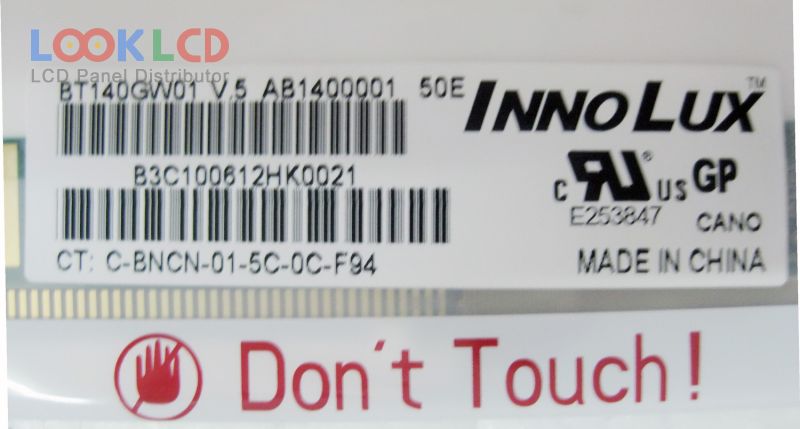

BT140GW01 V.5

BT140GW01 V.5
BT140GW01 V.5
BT140GW01 V.5 thumb BT140GW01 V.5 thumb
Handelsmerk
Innolux
Grootte
14.0
Toepassing
NBPC
Resolusie
1366×768
Samestelling
LCM
Helderheid
200
CR
600:1
Kleure
262K
Agterlig
WLED
Koppelvlak
LVDS
In Stock
1542
Spesifikasies

Onderdeel nommer BT140GW01 V.5
HandelsmerkInnolux
Grootte14.0
ToepassingNBPC
Resolusie1366×768
SamestellingLCM
Helderheid200
CR600:1
Kleure262K
AgterligWLED
KoppelvlakLVDS
paneel handelsmerkCHIMEI INNOLUX
paneel modelBT140GW01 V.5 4 Compatible model
paneel tipe a-Si TFT-LCD , LCM
paneel grootte14.0 inch
resolusie1366(RGB)×768 , WXGA
vertoonmodusTN, Normally White, Transmissive
aktiewe area309.399×173.952 mm
buitelyn323.5×192×5.2 mm
vorm stylWedge (PCBA Bent, Depth ≥5.2mm)
oppervlakGlare (Haze 0%), Hard coating (3H)
helderheid200 cd/m² (Typ.)
kontras verhouding600:1 (Typ.)
kleure vertoon262K (6-bit), CIE193145%
reaksie tyd8 (Typ.)(Tr+Td)
kykhoek40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lampWLEDEmbedded (LED Driver)
sein koppelvlakLVDS (1 ch, 6-bit), 40 pins
insetspanning3.3V (Typ.)
aansoekNBPC
Familie Model
B140XTN03.1 AUO 14.0 1366×768
BT140GW01 V.0 Innolux 14.0 1366×768
BT140GW01 V.4 Innolux 14.0 1366×768
BT140GW01 V.5 Innolux 14.0 1366×768
BT140GW01 V.A Innolux 14.0 1366×768
BT140GW02 V.0 Innolux 14.0 1366×768
BT140GW02 V.2 Innolux 14.0 1366×768
BT140GW02 V.9 Innolux 14.0 1366×768
BT140GW03 V.2 Innolux 14.0 1366×768
LP140WF1-SPB1 LG Display 14.0 1920×1080
