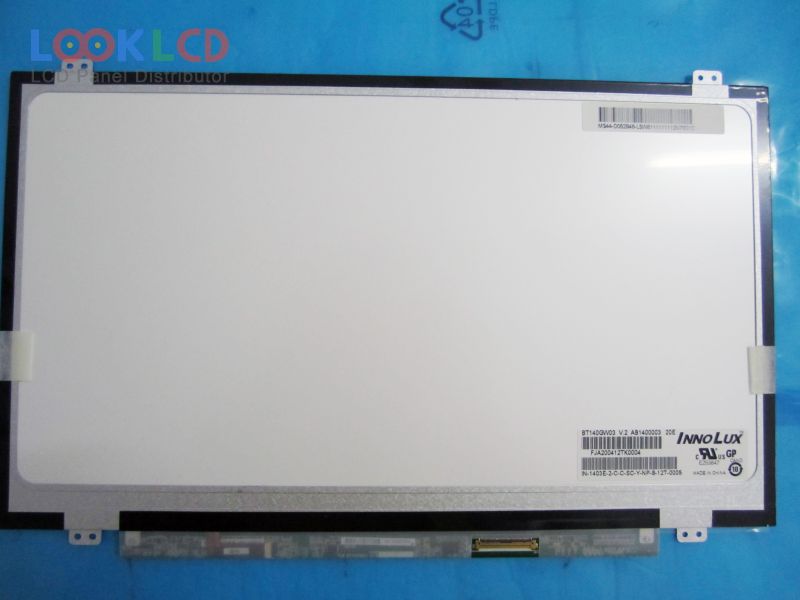

BT140GW03 V.2

BT140GW03 V.2
BT140GW03 V.2
BT140GW03 V.2
BT140GW03 V.2 thumb BT140GW03 V.2 thumb BT140GW03 V.2 thumb
Handelsmerk
Innolux
Grootte
14.0
Toepassing
NBPC
Resolusie
1366×768
Samestelling
LCM
Helderheid
200
CR
600:1
Kleure
262K
Agterlig
WLED
Koppelvlak
LVDS
In Stock
1729
Spesifikasies

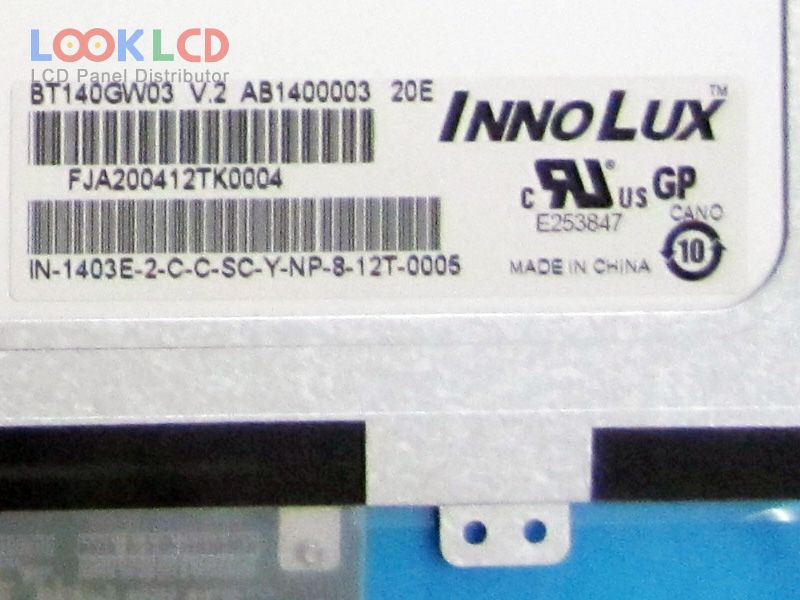

Onderdeel nommer BT140GW03 V.2
HandelsmerkInnolux
Grootte14.0
ToepassingNBPC
Resolusie1366×768
SamestellingLCM
Helderheid200
CR600:1
Kleure262K
AgterligWLED
KoppelvlakLVDS
paneel handelsmerkCHIMEI INNOLUX
paneel modelBT140GW03 V.2 6 Compatible model
paneel tipe a-Si TFT-LCD , LCM
paneel grootte14.0 inch
resolusie1366(RGB)×768 , WXGA
vertoonmodusTN, Normally White, Transmissive
aktiewe area309.399×173.952 mm
buitelyn320.4×205.1×3.6 mm
vorm stylFlat (PCBA Flat, Depth 3.4~4.0mm)
oppervlakGlare (Haze 0%), Hard coating (3H)
helderheid200 cd/m² (Typ.)
kontras verhouding600:1 (Typ.)
kleure vertoon262K (6-bit), CIE193145%
reaksie tyd8 (Typ.)(Tr+Td)
kykhoek45/45/15/30 (Typ.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lamp9S4PWLEDEmbedded (LED Driver)

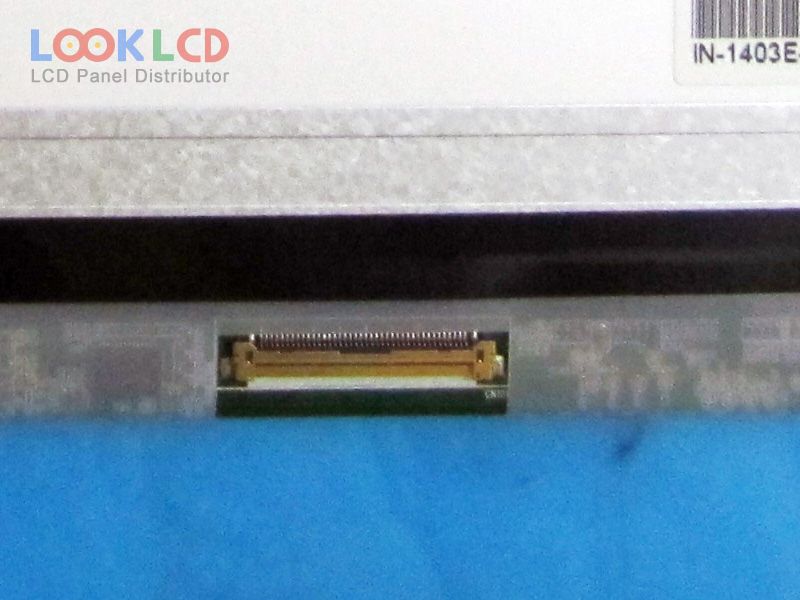

sein koppelvlakLVDS (1 ch, 6-bit), 40 pins
insetspanning3.3V (Typ.)
aansoekNBPC
