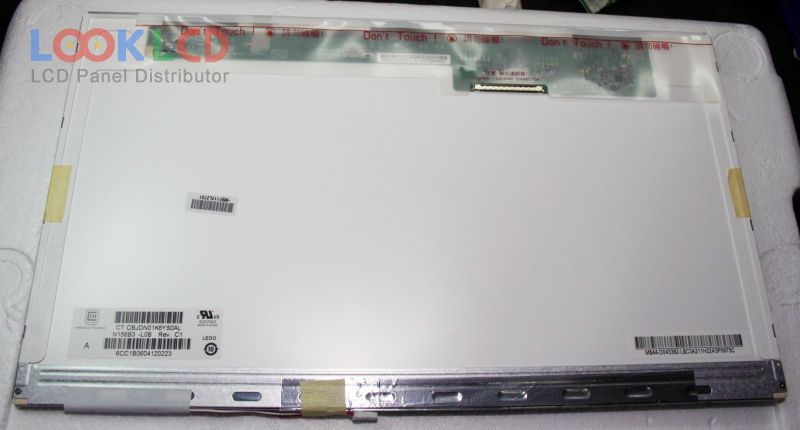

| Onderdeel nommer | N156B3-L0B |
| Handelsmerk | Innolux |
| Grootte | 15.6 |
| Toepassing | NBPC |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | N156B3-L0B |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.6 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 344.232×193.536 mm |
| buitelyn | 359.3×209.5×6.2 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 3/7 (Typ.)(Tr/Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
