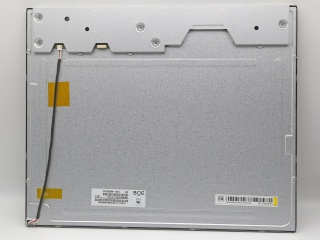

| Onderdeel nommer | ZV190E0M-N10 |
| Handelsmerk | BOE |
| Grootte | 19.0 |
| Toepassing | Industrial |
| Resolusie | 1280×1024 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | BOE |
| model naam | ZV190E0M-N10 |
| skerm grootte | 19.0 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1280(RGB)×1024 (SXGA) 86PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 374.784 × 299.827 (H×V) |
| buitelyn (mm) | 396 × 324 × 13.38 (H×V×D) |
| ring area (mm) | 378.8 × 303 (H×V) |
| behandeling | - |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 14 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | ADS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 90% NTSC |
| agterlig | WLED , 50K hours , With LED Driver |
| massa | 1.80Kgs (Typ.) |
| gebruik vir | Industrial |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (2 ch, 8-bit) , Connector 30 pins |
| spanningstoevoer | 5.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 75 °C Operating Temp.: -20 ~ 70 °C |
| G190ETN02.0 | AUO | 19.0 | 1280×1024 |
| HSD190MEN4-A03 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN6-A00 | HannStar | 19.0 | 1280×1024 |
| HT190WG3-100 | BOE | 19.0 | 1440×900 |
| HT190WG3-500 | BOE | 19.0 | 1440×900 |
| LM190E08-TLL3 | LG Display | 19.0 | 1280×1024 |
| M190EN03 V0 | AUO | 19.0 | 1280×1024 |
| MT190AW02 V.4 | Innolux | 19.0 | 1440×900 |
| NL128102AC29-17 | NLT | 19.0 | 1280×1024 |
| TMS190WX1-08TC | Tianma | 19.0 | 1440×900 |
