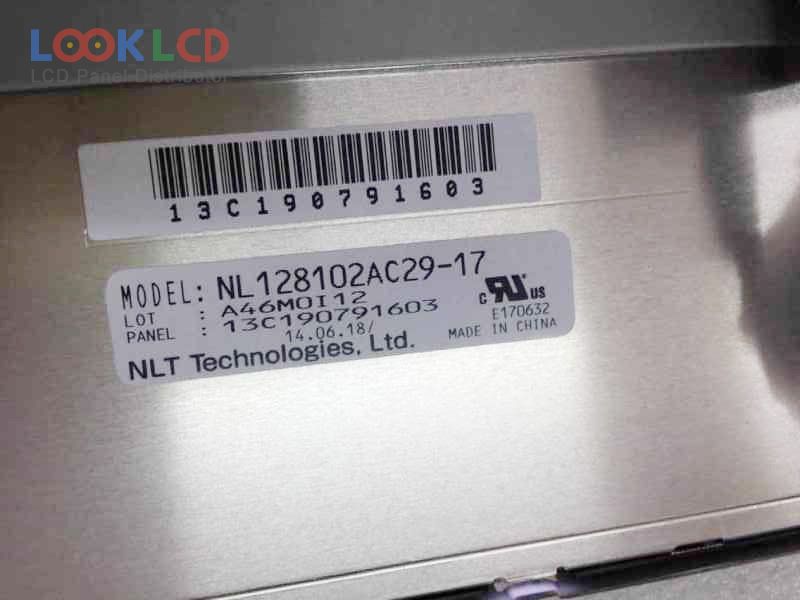

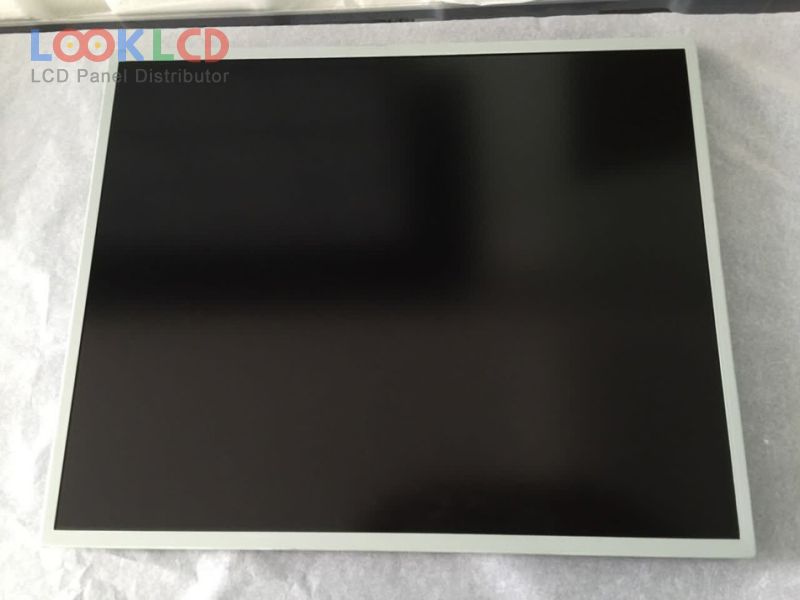

| Onderdeel nommer | NL128102AC29-17 |
| Handelsmerk | NLT |
| Grootte | 19.0 |
| Toepassing | IA |
| Resolusie | 1280×1024 |
| Samestelling | LCM |
| Helderheid | 800 |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | NLT |
| paneel model | NL128102AC29-17 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 19.0 inch |
| resolusie | 1280(RGB)×1024 , SXGA |
| vertoonmodus | UA-SFT, Normally Black, Transmissive |
| aktiewe area | 376.32×301.056 mm |
| buitelyn | 396×324×18.5 mm |
| oppervlak | Antiglare, Hard coating (2H) |
| helderheid | 800 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 14/11 (Typ.)(Tr+Td) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | IA |
