{{handelsmerk}} T260XW02 V9 datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

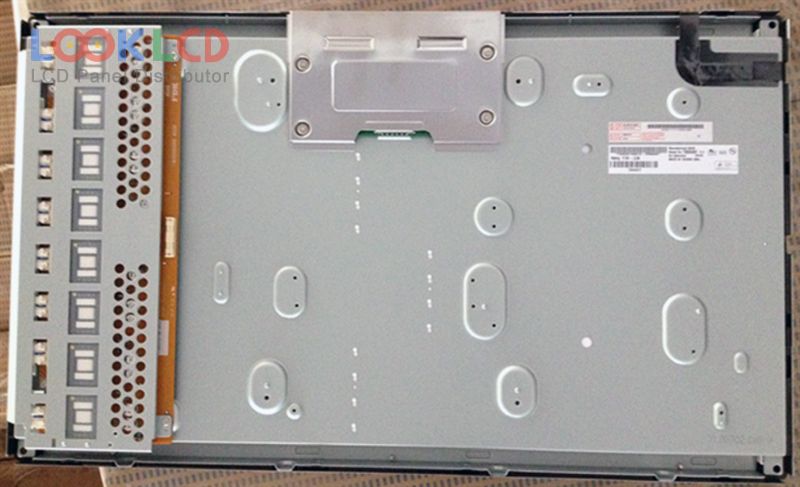

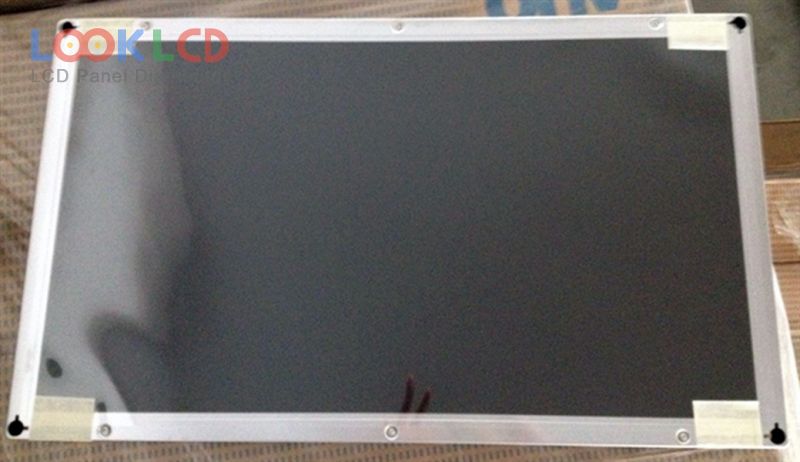

T260XW02 V9

T260XW02 V9
T260XW02 V9
T260XW02 V9 thumb T260XW02 V9 thumb
Handelsmerk
AUO
Grootte
26.0
Toepassing
LCTV
Resolusie
1366×768
Samestelling
LCM
Helderheid
530
CR
1200:1
Kleure
16.7M
Agterlig
CCFL
Koppelvlak
LVDS
In Stock
11
Spesifikasies

Onderdeel nommer T260XW02 V9
HandelsmerkAUO
Grootte26.0
ToepassingLCTV
Resolusie1366×768
SamestellingLCM
Helderheid530
CR1200:1
Kleure16.7M
AgterligCCFL
KoppelvlakLVDS
paneel handelsmerkAUO
paneel modelT260XW02 V9
paneel tipe a-Si TFT-LCD , LCM
paneel grootte26.0 inch
resolusie1366(RGB)×768 , WXGA
vertoonmodusVA, Normally Black, Transmissive
aktiewe area575.769×323.712 mm
buitelyn626×373 mm
oppervlakAntiglare, Hard coating (3H)
helderheid530 cd/m² (Typ.)
kontras verhouding1200:1 (Typ.)
kleure vertoon16.7M (8-bit), CIE193172%
reaksie tyd8 (Typ.)(G to G)
kykhoek89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lamp8 pcsCCFLEmbedded (Inverter)
sein koppelvlakLVDS (1 ch, 8-bit), 41 pins
insetspanning5.0V (Typ.)
aansoekLCTV
Familie Model
T260XVN01.4 AUO 26.0 1366×768
T260XW02 V0 AUO 26.0 1366×768
T260XW02 V5 AUO 26.0 1366×768
T260XW02 V9 AUO 26.0 1366×768
T260XW02 VB AUO 26.0 1366×768
T260XW02 VS AUO 26.0 1366×768
T260XW04 V5 AUO 26.0 1366×768
T260XW04 V6 AUO 26.0 1366×768
T260XW05 V0 AUO 26.0 1366×768
T260XW06 V5 AUO 26.0 1366×768
