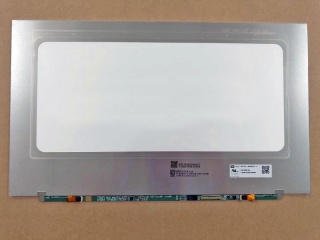

| Onderdeel nommer | MNF601EA1-4 |
| Handelsmerk | CSOT |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | CSOT |
| paneel model | MNF601EA1-4 |
| paneel grootte | 15.6" |
| paneel tipe | LTPS TFT-LCD, LCM |
| resolusie | 3840(RGB)×2160, UHD, 282PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 345.6(W)×194.4(H) mm |
| ring opening | - |
| helderheid | - |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | FFS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kleure vertoon | 16.7M |
| tipe lamp | WLED , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (4 Lanes) Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
