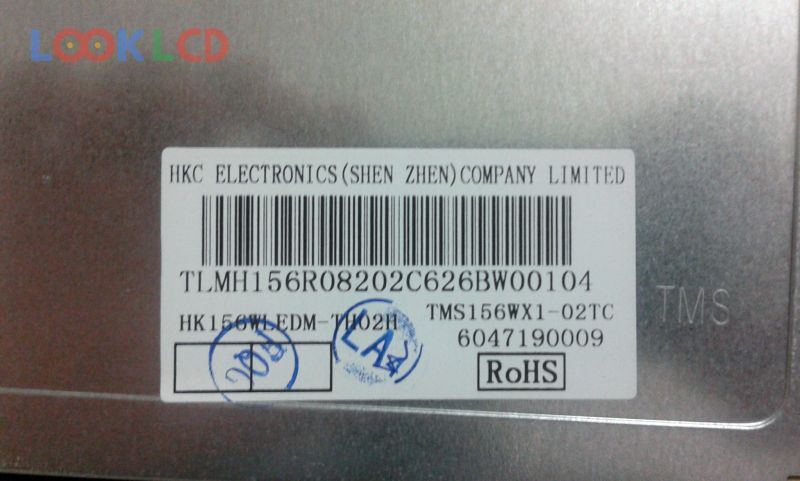

| Onderdeel nommer | TMS156WX1-02TC |
| Handelsmerk | Tianma |
| Grootte | 15.6 |
| Toepassing | DMPC |
| Resolusie | 1366×768 |
| Samestelling | CELL |
| Helderheid | 0 |
| CR | 500:1 |
| Kleure | 16.7M |
| Agterlig | No B/L |
| Koppelvlak | LVDS |
| paneel handelsmerk | AVIC |
| paneel model | TMS156WX1-02TC |
| paneel tipe | a-Si TFT-LCD , CELL |
| paneel grootte | 15.6 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 344.232×193.536 mm |
| oppervlak | |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193160% |
| reaksie tyd | 2/6 (Typ.)(Tr/Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| sein koppelvlak | LVDS (1 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | DMPC |
