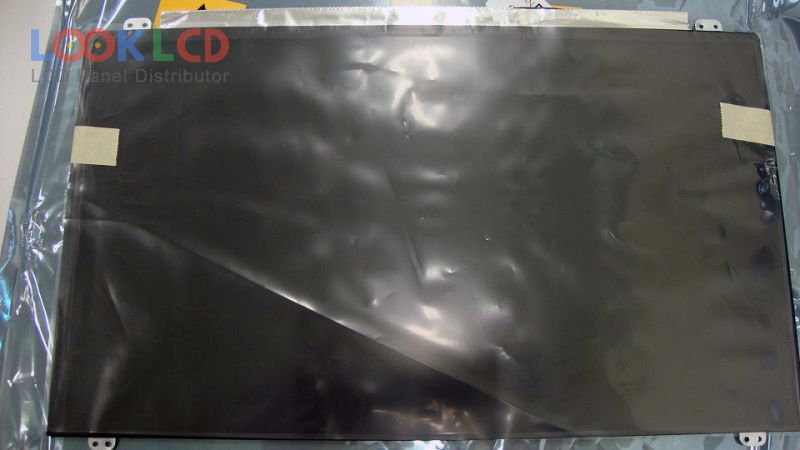

| Onderdeel nommer | N156HGE-EA1 |
| Handelsmerk | Innolux |
| Grootte | 15.6 |
| Toepassing | NBPC |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 300 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | INNOLUX |
| paneel model | N156HGE-EA1 12 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.6 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 344.16×193.59 mm |
| buitelyn | 359.5×223.8×3.2 mm |
| vorm styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193160% |
| reaksie tyd | 3/8 (Typ.)(Tr/Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6 stringsWLEDEmbedded (LED Driver) |
| sein koppelvlak | eDP (2 Lanes), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
