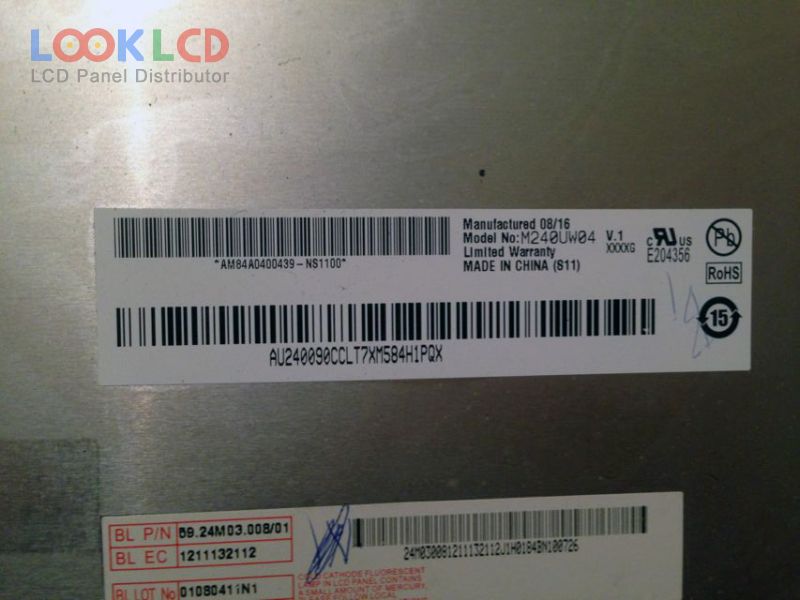

| Onderdeel nommer | M240UW04 V1 |
| Handelsmerk | AUO |
| Grootte | 24.0 |
| Toepassing | DMPC |
| Resolusie | 1920×1200 |
| Samestelling | LCM |
| Helderheid | 450 |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | M240UW04 V1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 24.0 inch |
| resolusie | 1920(RGB)×1200 , WUXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 518.4×324 mm |
| buitelyn | 546.4×352 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 16.7M (6-bit + Hi-FRC), CIE193192% |
| reaksie tyd | 3.4/1.6 (Typ.)(Tr/Td) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | DMPC |
