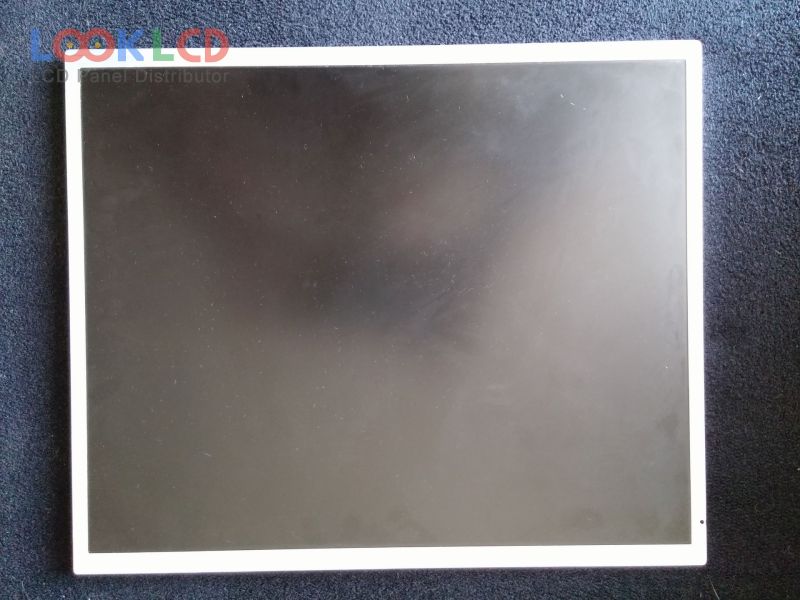

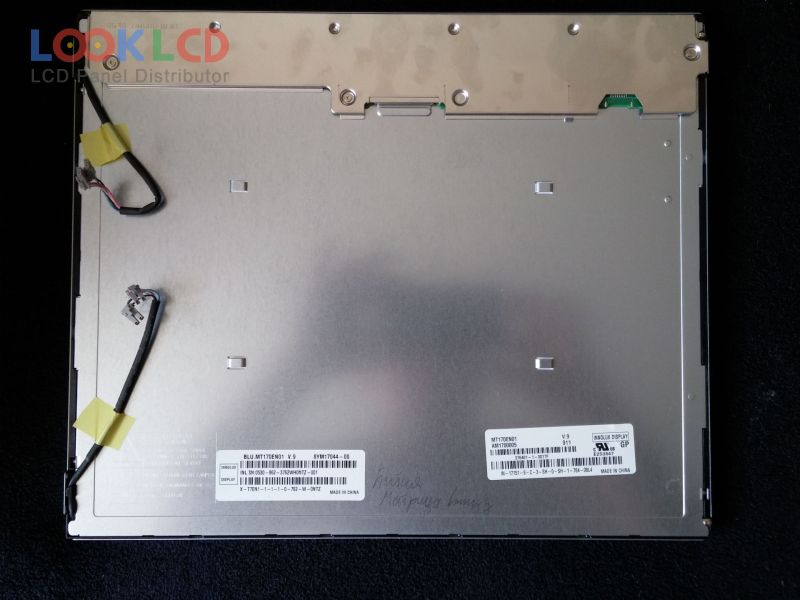

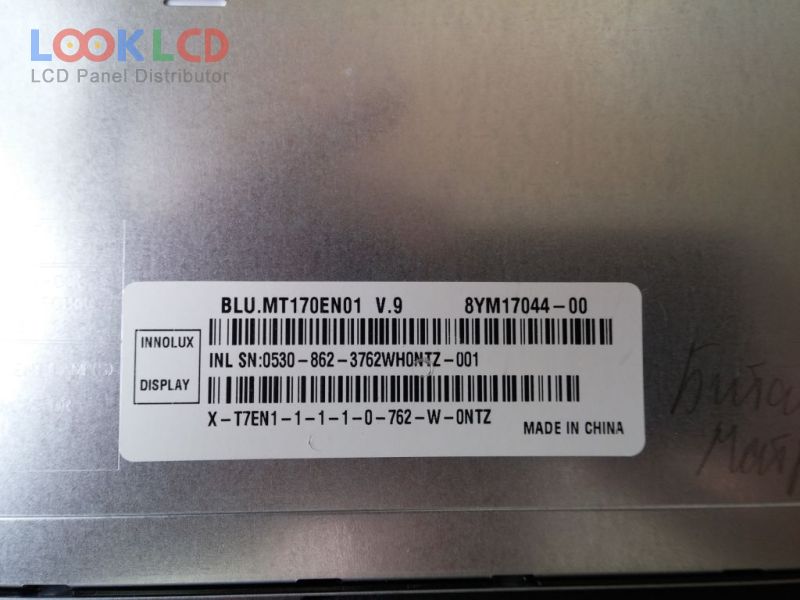

| Onderdeel nommer | MT170EN01 V.9 |
| Handelsmerk | Innolux |
| Grootte | 17.0 |
| Toepassing | DMPC |
| Resolusie | 1280×1024 |
| Samestelling | LCM |
| Helderheid | 300 |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | INNOLUX |
| paneel model | MT170EN01 V.9 5 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 17.0 inch |
| resolusie | 1280(RGB)×1024 , SXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 337.92×270.336 mm |
| buitelyn | 358.5×296.5×17.5 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) |
| kleure vertoon | 16.7M (6-bit + Hi-FRC), CIE193172% |
| reaksie tyd | 1/4 (Typ.)(Tr/Td) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 4 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | DMPC |
