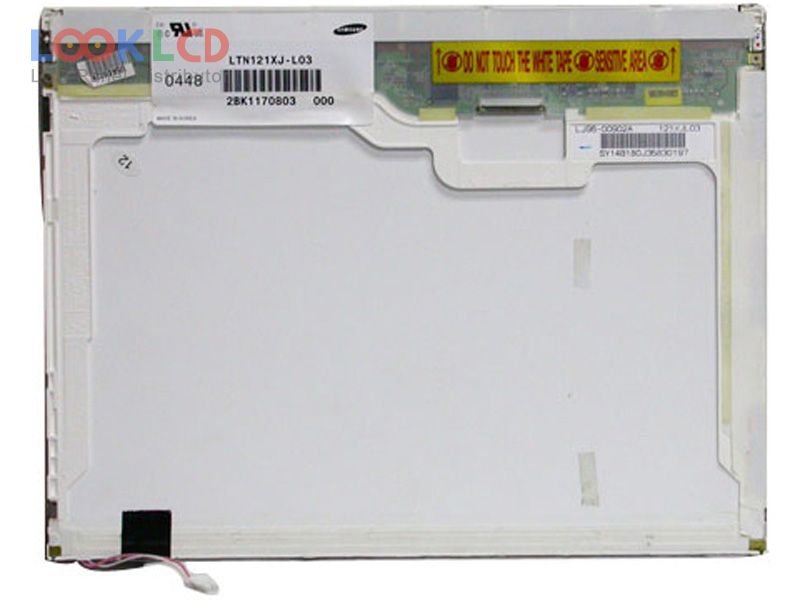

| Onderdeel nommer | LTN121XJ-L03 |
| Handelsmerk | Samsung |
| Grootte | 12.1 |
| Toepassing | NBPC |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 150 |
| CR | 200:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTN121XJ-L03 5 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 12.1 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 245.76×184.32 mm |
| buitelyn | 261×199×5 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 150 cd/m² (Typ.) |
| kontras verhouding | 200:1 (Min.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 6/25 (Typ.)(Tr/Td) |
| kykhoek | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
