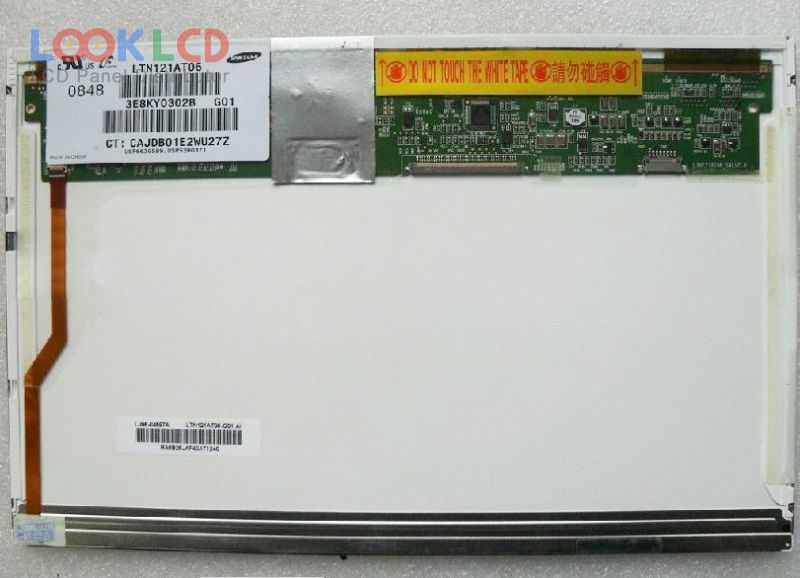

| Onderdeel nommer | LTN121AT06-G01 |
| Handelsmerk | Samsung |
| Grootte | 12.1 |
| Toepassing | NBPC |
| Resolusie | 1280×800 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTN121AT06-G01 5 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 12.1 inch |
| resolusie | 1280(RGB)×800 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 261.12×163.2 mm |
| buitelyn | 275.8×178.1×5.5 mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 45/45/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6S6PWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
| LTN121AP03-001 | Samsung | 12.1 | 1280×800 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| LTN121AT01-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT01-002 | Samsung | 12.1 | 1280×800 |
| LTN121AT04-001 | Samsung | 12.1 | 1280×800 |
| LTN121AT06-G01 | Samsung | 12.1 | 1280×800 |
| LTN121AT07-L02 | Samsung | 12.1 | 1280×800 |
| LTN121AT10-301 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-801 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| B131HW02 V0 | AUO | 13.1 | 1920×1080 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP154W01-TLF1 | LG Display | 15.4 | 1280×800 |
| LTD121EXPD | TOSHIBA | 12.1 | 1280×800 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| N150P3-L01 | IDTech | 15.0 | 1400×1050 |
| TX41D97VC1HAA | KOE | 16.1 | 1400×1050 |
