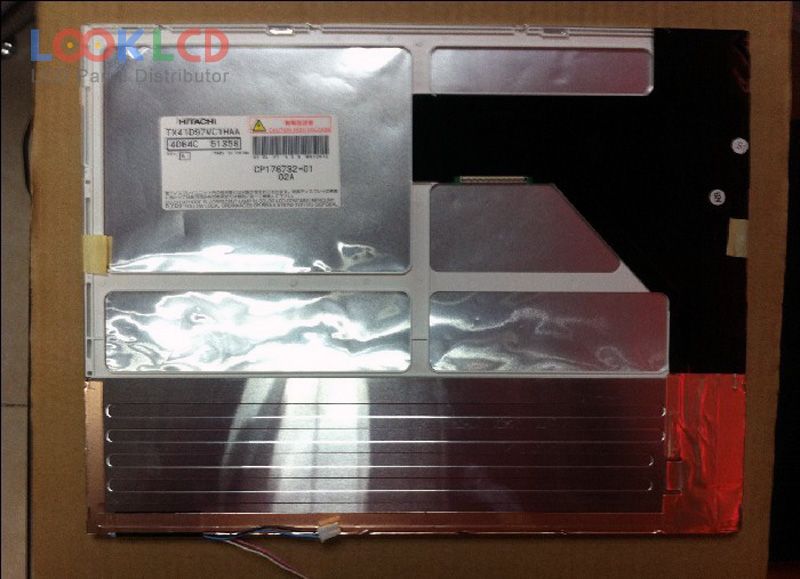

| Onderdeel nommer | TX41D97VC1HAA |
| Handelsmerk | KOE |
| Grootte | 16.1 |
| Toepassing | NBPC |
| Resolusie | 1400×1050 |
| Samestelling | LCM |
| Helderheid | 330 |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |

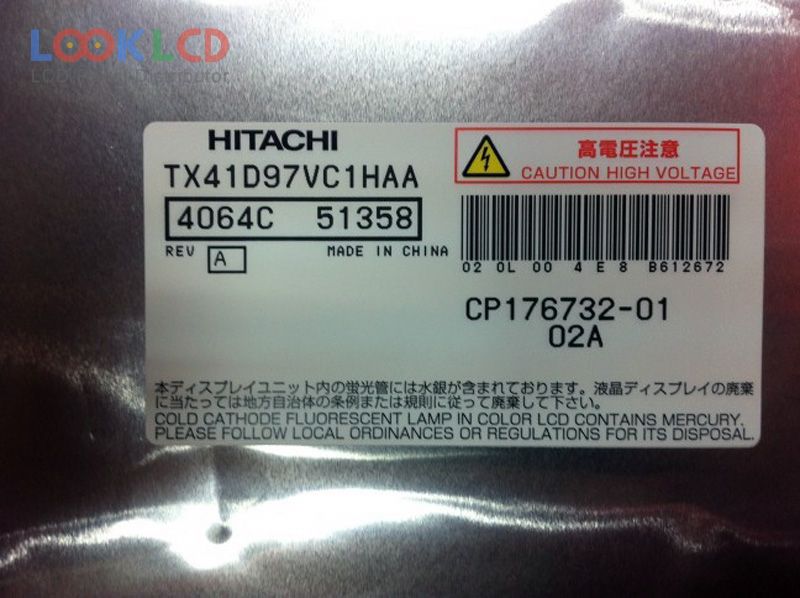

| paneel handelsmerk | HITACHI |
| paneel model | TX41D97VC1HAA |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 16.1 inch |
| resolusie | 1400(RGB)×1050 , SXGA+ |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 326.55×244.913 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Glare (Haze 0%), Hard coating (2H), Reflection 1.2% (Typ.) |
| helderheid | 330 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 30/20 (Typ.)(Tr/Td) |
| kykhoek | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |

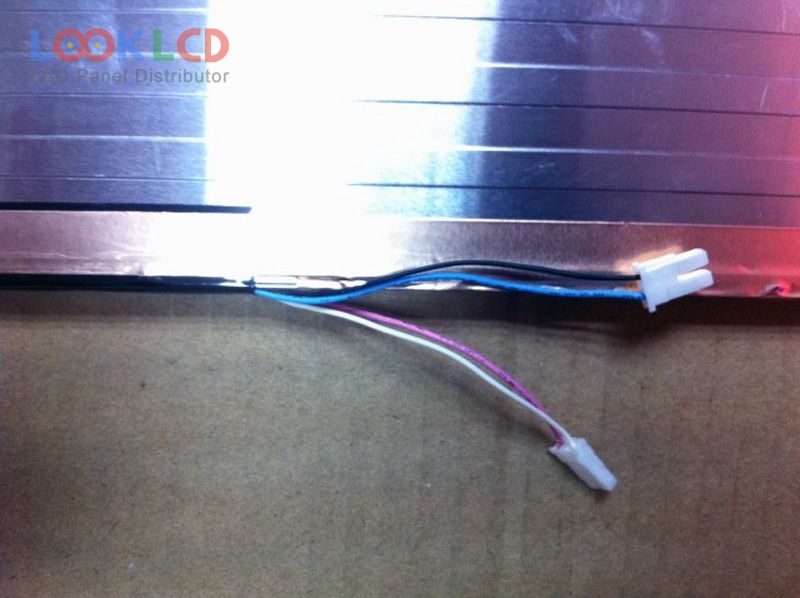

| tipe lamp | 2 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
