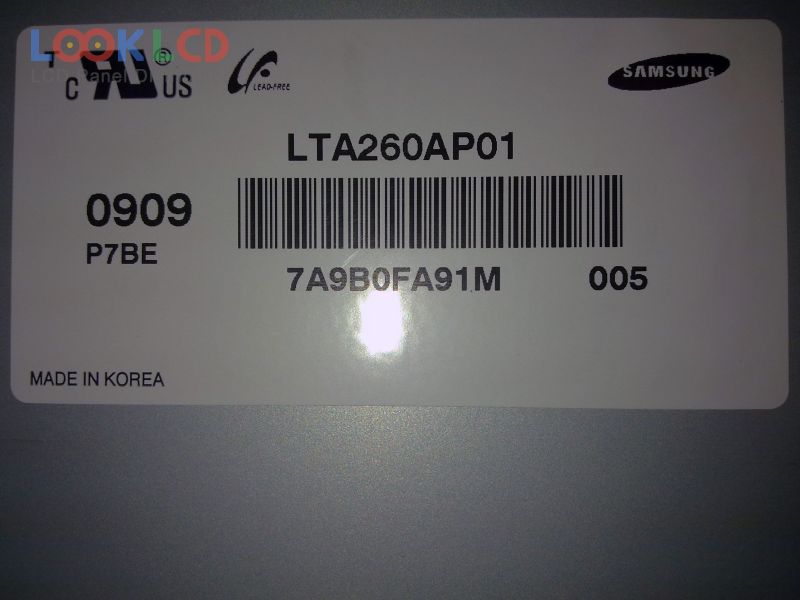

| Onderdeel nommer | LTA260AP01 |
| Handelsmerk | Samsung |
| Grootte | 26.0 |
| Toepassing | LCTV |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 450 |
| CR | 2000:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTA260AP01 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 26.0 inch |
| resolusie | 1366×768(RGB) , WXGA |
| vertoonmodus | APVA, Normally Black, Transmissive |
| aktiewe area | 575.769×323.712 mm |
| buitelyn | 626×373×50 mm |
| oppervlak | Antiglare (Haze 14%), Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 2000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 8 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 5 pcsCCFLEmbedded (Inverter) |
| sein koppelvlak | LVDS (1 ch, 8-bit), 30 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
