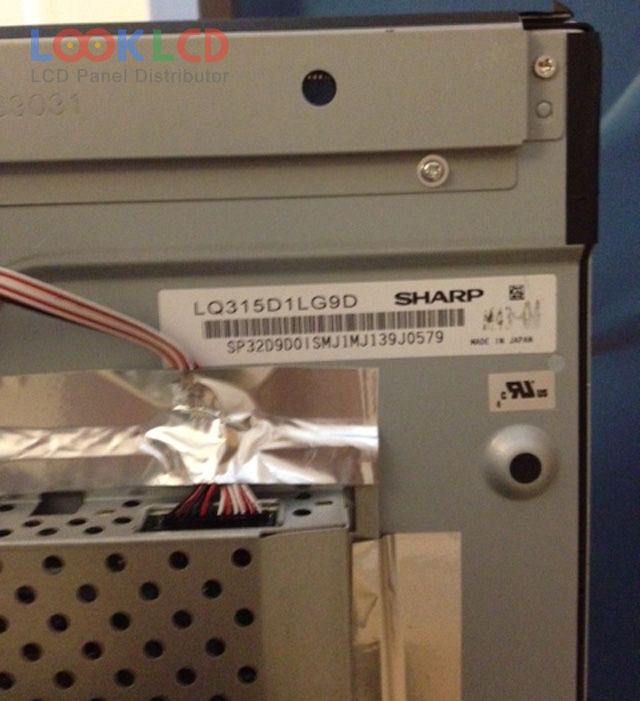

| Onderdeel nommer | LQ315D1LG9D |
| Handelsmerk | SHARP |
| Grootte | 31.5 |
| Toepassing | DMPC |
| Resolusie | 3840×2160 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 1000:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SHARP |
| paneel model | LQ315D1LG9D |
| paneel tipe | IGZO TFT-LCD , LCM |
| paneel grootte | 31.5 inch |
| resolusie | 3840(RGB)×2160 , UHD |
| vertoonmodus | New Mode2, Normally Black, Transmissive |
| aktiewe area | 697.92×392.58 mm |
| oppervlak | Antiglare, Hard coating (3H), Antireflection |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 1.07B (10-bit), Adobe |
| reaksie tyd | 8 (Typ.)(G to G) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (8 ch, 10-bit) |
| insetspanning | 12.0V (Typ.) |
| aansoek | DMPC |
