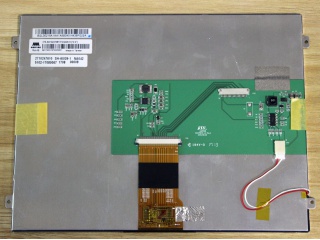

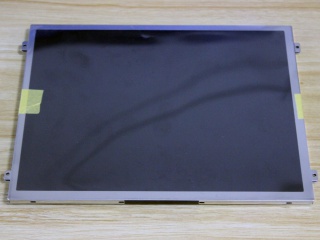

| Onderdeel nommer | AM-1024768Y2TZQW-A1H |
| Handelsmerk | AMPIRE |
| Grootte | 10.4 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1024×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AMPIRE |
| paneel model | AM-1024768Y2TZQW-A1H |
| paneel grootte | 10.4" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1024(RGB)×768, XGA, 123PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 211.2(W)×158.4(H) mm |
| ring opening | 213.2(W)×160.4(H) mm |
| omtrek grootte | 236(W)×174.3(H) ×10.4(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 1000 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 16.2M |
| tipe lamp | WLED , 30K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | TBD |
| aansoek | Industrial Outdoor High Brightness |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
