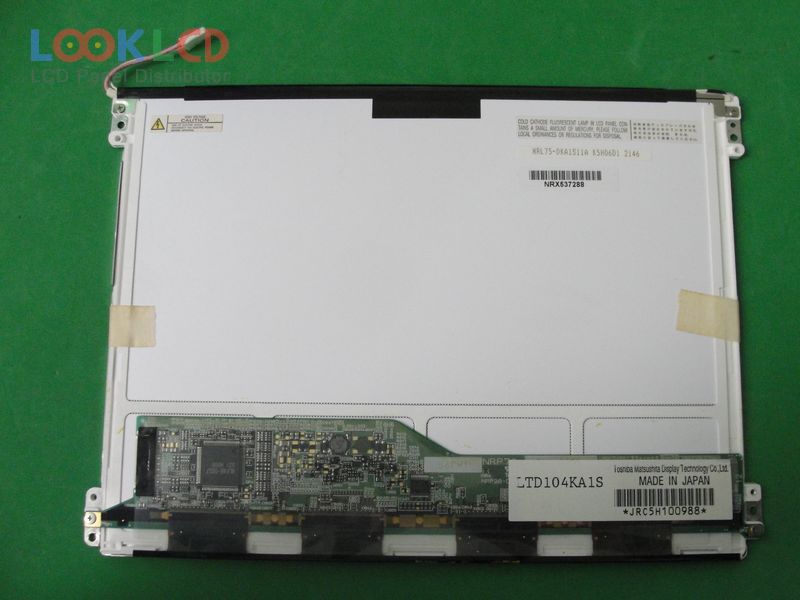

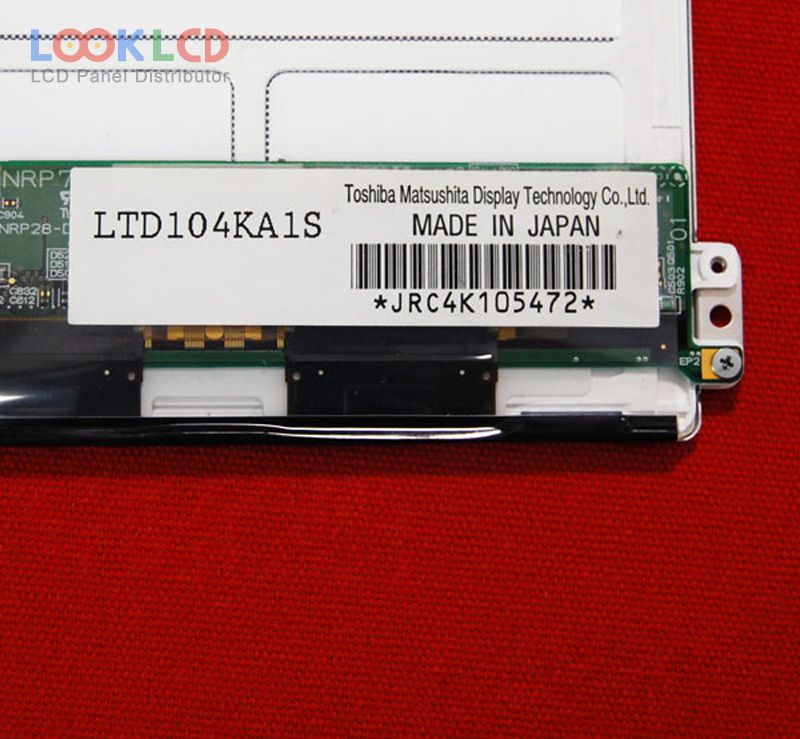

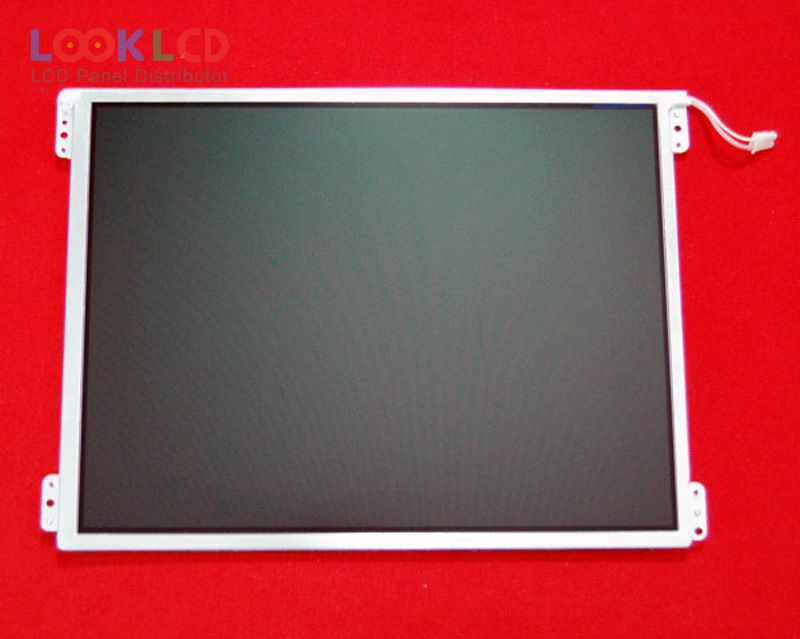

| Onderdeel nommer | LTD104KA1S |
| Handelsmerk | TOSHIBA |
| Grootte | 10.4 |
| Toepassing | NBPC |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 170 |
| CR | 250:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | Toshiba Matsushita |
| paneel model | LTD104KA1S |
| paneel tipe | LTPS TFT-LCD , LCM |
| paneel grootte | 10.4 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 210.4×157.8 mm |
| buitelyn | 238.6×173.2 mm |
| oppervlak | |
| helderheid | 170 cd/m² (Typ.) |
| kontras verhouding | 250:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 50/50 (Max.)(Tr/Td) |
| kykhoek | 45/45/20/30 (Typ.)(CR≥10)(L/R/U/D) |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 14 pins |
| insetspanning | 3.3V (Typ.) |
| rohs: | |
| aansoek | NBPC |
