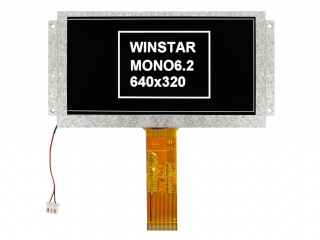

| Onderdeel nommer | WF62ATXGRDNN0 |
| Handelsmerk | Winstar |
| Grootte | 6.2 |
| Toepassing | Industrial |
| Resolusie | 640×320 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleure | Grayscale |
| Agterlig | WLED |
| Koppelvlak | 8-bit |
| vervaardiger | Winstar |
| model naam | WF62ATXGRDNN0 |
| skerm grootte | 6.2 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 640×320 116PPI |
| reëling | Rectangle |
| aktiewe area (mm) | 140 × 70 (H×V) |
| buitelyn (mm) | 170.32 × 83.3 × 5.6 (H×V×D) |
| ring area (mm) | 141.6 × 73.4 (H×V) |
| behandeling | Glare (Haze 0%) |
| helderheid | 600 cd/m² (Typ.) |
| kontras verhouding | 800 : 1 (Typ.) (TM) |
| kykhoek | - |
| reaksie | - |
| goeie uitsig by | Symmetry |
| werksmodus | VA, Normally Black, Transmissive |
| kleurdiepte | Grayscale |
| agterlig | WLED , No Driver |
| massa | - |
| gebruik vir | Industrial |
| herlaaitempo | - |
| raakskerm | Without |
| sein tipe | 8-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
