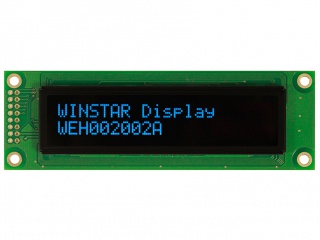

| Onderdeel nommer | WEH002002AB |
| Handelsmerk | Winstar |
| Grootte | 3.1 |
| Toepassing | Instruments & Me |
| Resolusie | 20×26 |
| Samestelling | PM-OLED, OLED |
| Helderheid | |
| CR | |
| Kleure | Mono(Blue) |
| Agterlig | self |
| Koppelvlak | CPU/SPI |
| paneel handelsmerk | Winstar |
| paneel model | WEH002002AB |
| paneel grootte | 3.1" |
| paneel tipe | PM-OLED, OLED |
| vertoon formaat | 20 characters × 2 lines, 6PPI |
| lettertipe formaat | 5×8 dots |
| karakter grootte | 3.2×5.55(W×H) mm |
| karakter toonhoogte | 3.9×6.3(W×H) mm |
| vertoon area | 77.3(W)×11.85(H) mm |
| ring opening | 85(W)×18.6(H) mm |
| omtrek grootte | 116(W)×37(H) ×9.8(D) mm |
| oppervlak | - |
| kykhoek | - |
| vertoonmodus | - |
| beste uitsig op | Symmetry |
| reaksie tyd | - |
| kleure vertoon | Mono(Blue) |
| tipe lamp | self |
| frekwensie | - |
| raakskerm | Without |
| bestuurder ic | COB Built-in WS0010 |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | CPU/SPI , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
| AMFN888 | Samsung | 3.1 | 480×800 |
| EL160.120.39 | Lumineq | 3.1 | 160×120 |
| EL160.120.39 CC | Lumineq | 3.1 | 160×120 |
| HGS256641-Y-EH-LV | Other | 3.1 | 256×64 |
| LT031MDZ4000 | JDI | 3.1 | 720×720 |
| RGS31256032WH000 | RiTdisplay | 3.1 | 256×32 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASWEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
