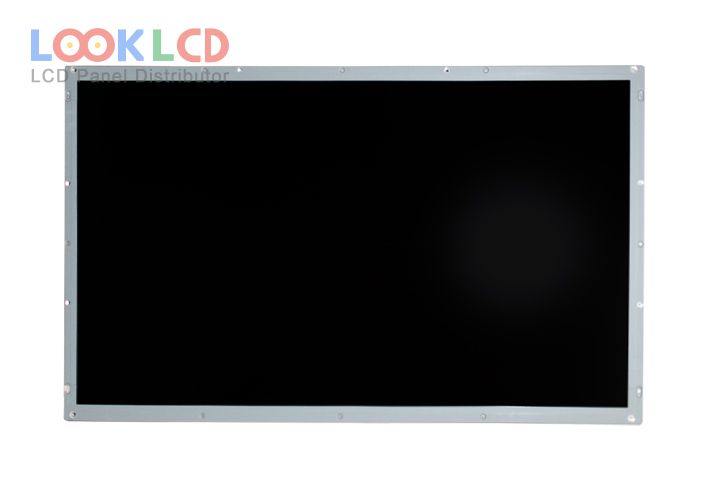

| Onderdeel nommer | V460H1-LS1 |
| Handelsmerk | Innolux |
| Grootte | 46 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 6000:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | CHIMEI INNOLUX |
| paneel model | V460H1-LS1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 46 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | Super MVA, Normally Black, Transmissive |
| aktiewe area | 1018.08×572.67 mm |
| buitelyn | 1076.5×634.7 mm |
| oppervlak | Antiglare (Haze 11%), Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 6000:1 (Typ.) |
| kleure vertoon | 1.07B (8-bit + Hi-FRC), CIE193172% |
| reaksie tyd | 6 (Typ.)(G to G) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekwensie | 120Hz |
| tipe lamp | 4 stringsWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (4 ch, 10-bit), 102 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
