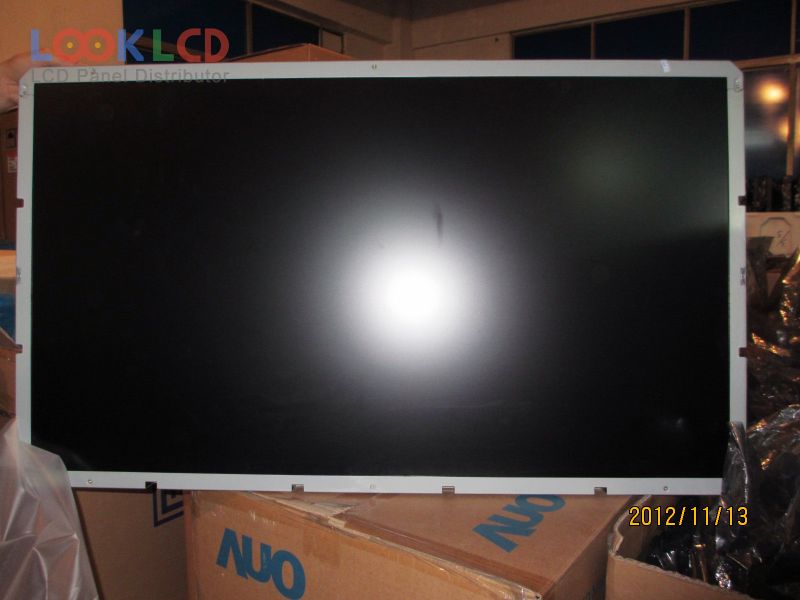

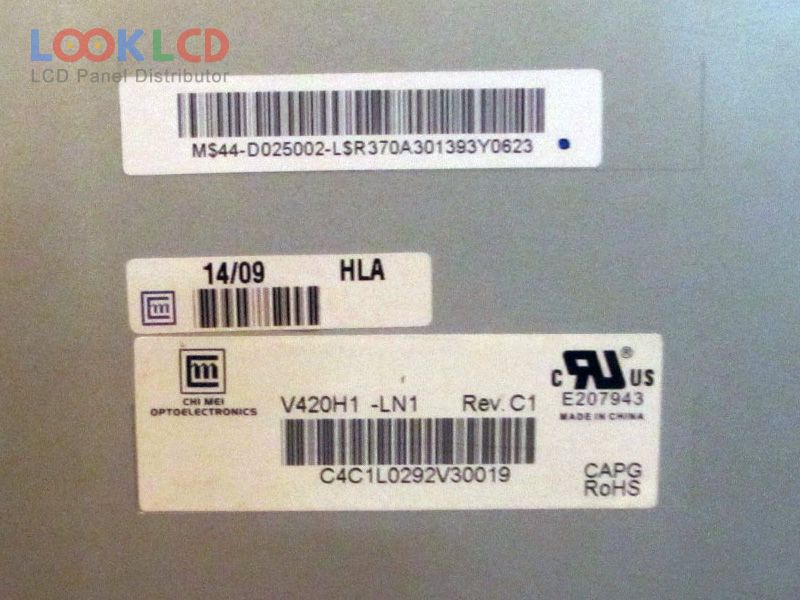

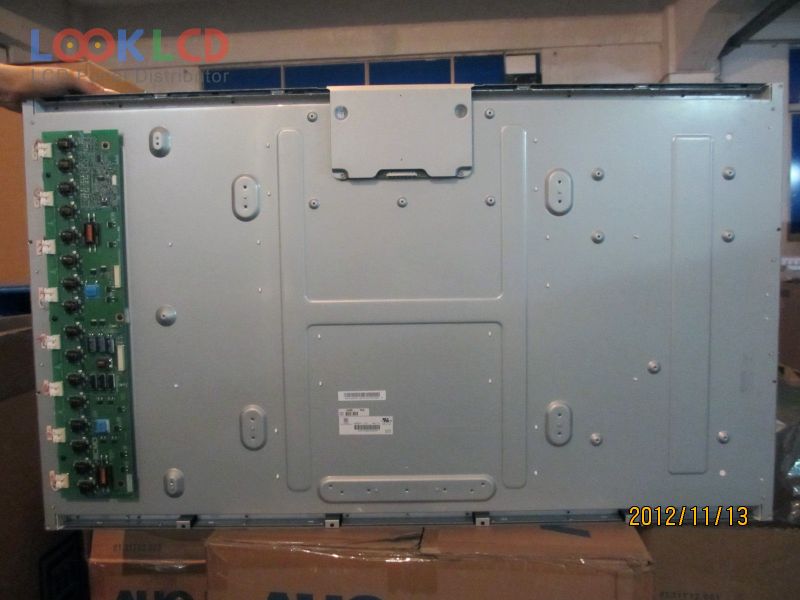

| Onderdeel nommer | V420H1-LN1 |
| Handelsmerk | Innolux |
| Grootte | 42 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 500 |
| CR | 4000:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | V420H1-LN1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 42 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | Super MVA, Normally Black, Transmissive |
| aktiewe area | 930.24×523.26 mm |
| buitelyn | 983×576 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 4000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 6.5 (Typ.)(G to G) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 16 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 8-bit), 51 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
