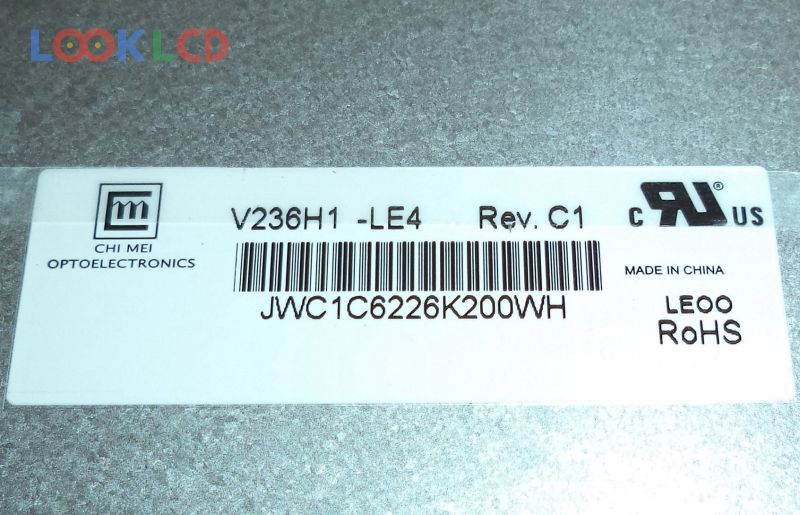

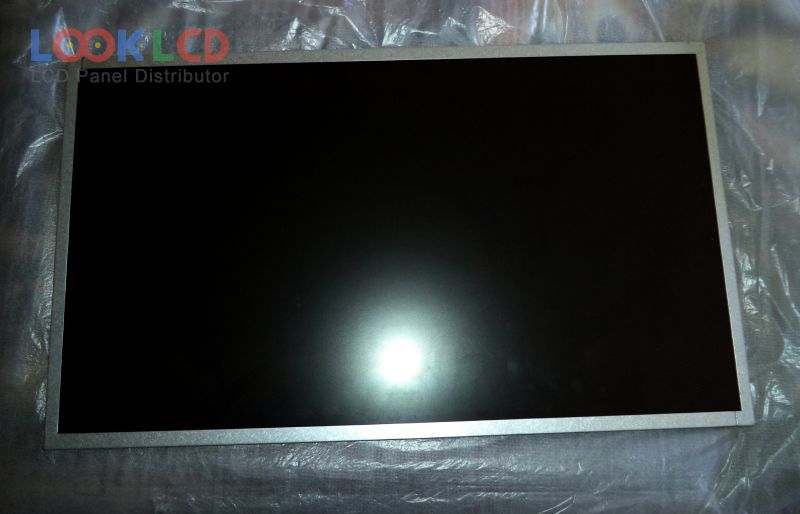

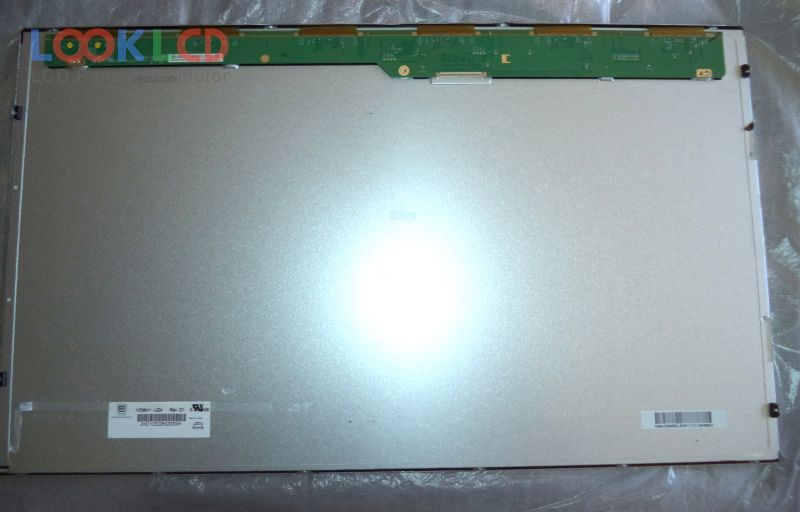

| Onderdeel nommer | V236H1-LE4 |
| Handelsmerk | Innolux |
| Grootte | 23.6 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 280 |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | CHIMEI INNOLUX |
| paneel model | V236H1-LE4 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 23.6 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 521.28×293.22 mm |
| buitelyn | 544.8×320.5 mm |
| oppervlak | Antiglare (Haze 25%) |
| helderheid | 280 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 16.7M (6-bit + Hi-FRC), CIE193172% |
| reaksie tyd | 1.5/3.5 (Typ.)(Tr/Td) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 9S8PWLEDWithout Driver |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | LCTV |
