{{handelsmerk}} LC370WX5-SLA1 datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

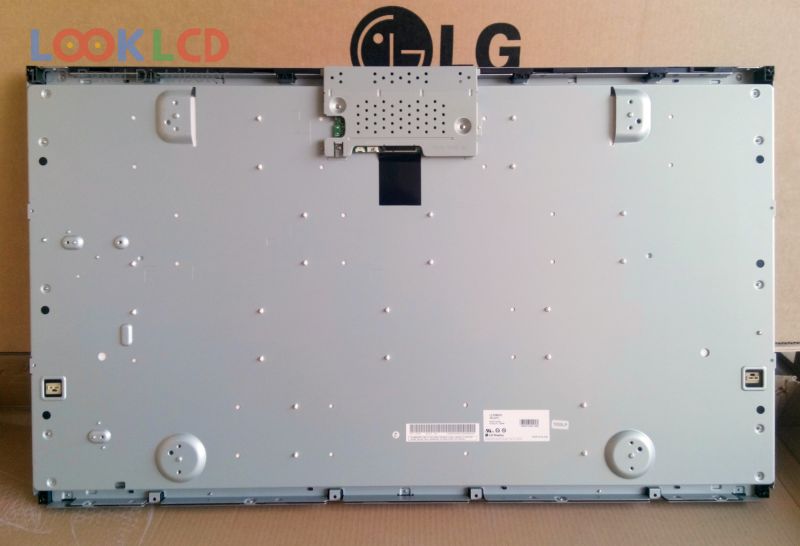

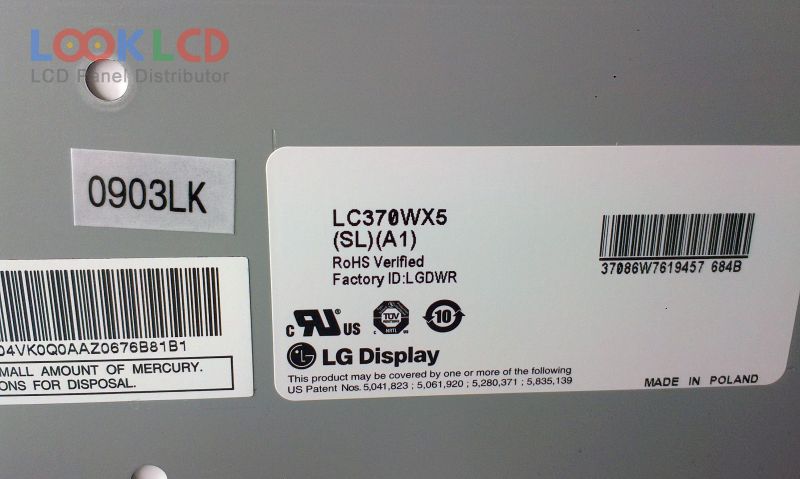

LC370WX5-SLA1

LC370WX5-SLA1
LC370WX5-SLA1
LC370WX5-SLA1 thumb LC370WX5-SLA1 thumb
Handelsmerk
LG Display
Grootte
37
Toepassing
LCTV
Resolusie
1366×768
Samestelling
LCM
Helderheid
500
CR
1000:1
Kleure
16.7M
Agterlig
EEFL
Koppelvlak
LVDS
In Stock
18902
Spesifikasies

Onderdeel nommer LC370WX5-SLA1
HandelsmerkLG Display
Grootte37
ToepassingLCTV
Resolusie1366×768
SamestellingLCM
Helderheid500
CR1000:1
Kleure16.7M
AgterligEEFL
KoppelvlakLVDS
paneel handelsmerkLG.Philips LCD
paneel modelLC370WX5-SLA1
paneel tipe a-Si TFT-LCD , LCM
paneel grootte37 inch
resolusie1366(RGB)×768 , WXGA
vertoonmodusS-IPS, Normally Black, Transmissive
aktiewe area819.6×460.8 mm
buitelyn877×516.8×47.9 mm
oppervlakAntiglare (Haze 13%), Hard coating (3H)
helderheid500 cd/m² (Typ.)
kontras verhouding1000:1 (Typ.)
kleure vertoon16.7M (8-bit), CIE193173%
reaksie tyd6 (Typ.)(G to G), 12 (Typ.)(Tr+Td)
kykhoek89/89/89/89 (Min.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lamp16 pcsEEFLWithout Driver
sein koppelvlakLVDS (1 ch, 8-bit), 30 pins
insetspanning12.0V (Typ.)
aansoekLCTV
