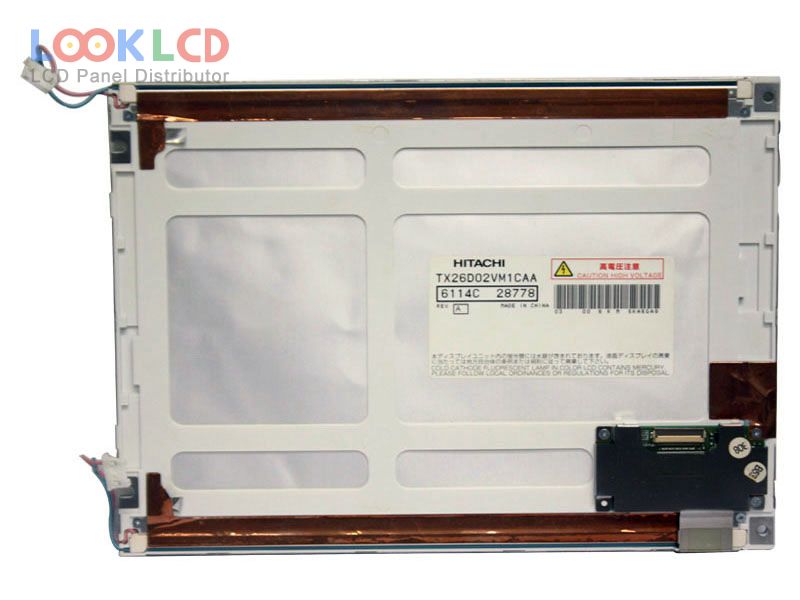

| Onderdeel nommer | TX26D02VM1CAA |
| Handelsmerk | KOE |
| Grootte | 10.4 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | TTL |
| paneel handelsmerk | HITACHI |
| paneel model | TX26D02VM1CAA |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 10.4 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 211.2×158.4 mm |
| buitelyn | 243×181.6×12.5 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 30/20 (Typ.)(Tr/Td) |
| kykhoek | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 2 pcsCCFLWithout Driver |
| sein koppelvlak | CMOS (1 ch, 6-bit), 32 pins |
| insetspanning | 3.3V (Typ.)(VDD) |
| rohs: | |
| aansoek | IA |
