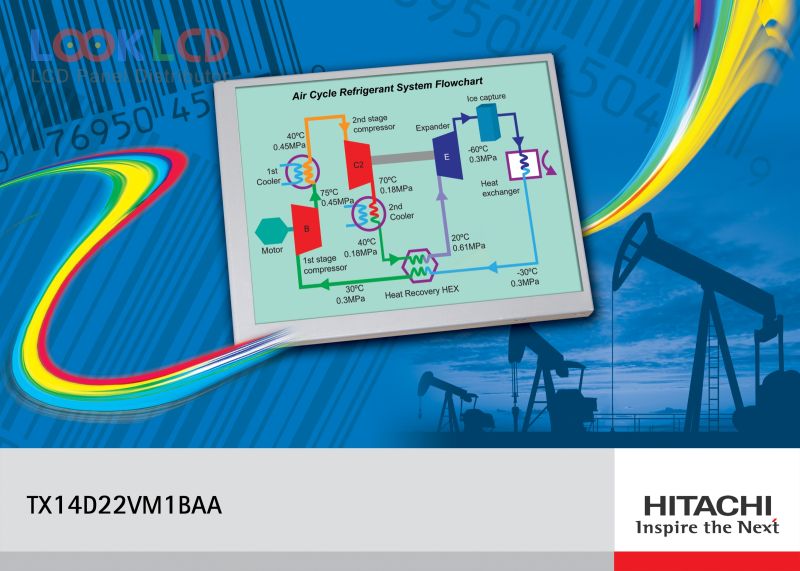

| Onderdeel nommer | TX14D22VM1BAA |
| Handelsmerk | KOE |
| Grootte | 5.7 |
| Toepassing | IA |
| Resolusie | 320×240 |
| Samestelling | LCM |
| Helderheid | 400 |
| CR | 350:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | HITACHI |
| paneel model | TX14D22VM1BAA |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 5.7 inch |
| resolusie | 320(RGB)×240 , QVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 115.2×86.4 mm |
| buitelyn | 131×102.2×7.1 mm |
| oppervlak | |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 350:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193150% |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 80/80/80/60 (Typ.)(CR≥5)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 3S5PWLEDWithout Driver |
| sein koppelvlak | CMOS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.)(VDD) |
| aansoek | IA |
| EL320.240.36 HB | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB NE CC | PLANAR | 5.7 | 320×240 |
| EW32F10BCW | EDT | 5.7 | 320×240 |
| G057VN01 V0 | AUO | 5.7 | 640×480 |
| G057VN01 V1 | AUO | 5.7 | 640×480 |
| G057VTN01.0 | AUO | 5.7 | 640×480 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| KCS057QV1BR-G21 | Kyocera | 5.7 | 320×240 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| EDTCB29QB0 | Panasonic | 10.4 | 800×600 |
| G104SN02 V1 | AUO | 10.4 | 800×600 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| PD080SL2 | E Ink | 8.0 | 800×600 |
| SX19V007 | KOE | 7.5 | 640×480 |
| TCG070WVLBA-A00 | Kyocera | 7.0 | 800×480 |
| TFD50W72MS | TOSHIBA | 5.0 |
