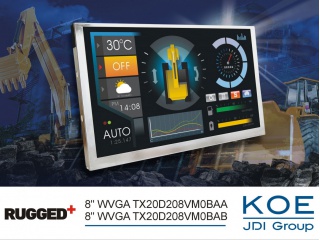

| Onderdeel nommer | TX20D208VM0BAA |
| Handelsmerk | HITACHI |
| Grootte | 8.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | HITACHI |
| paneel model | TX20D208VM0BAA |
| paneel grootte | 8.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 800(RGB)×480, WVGA, 116PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 174(W)×104.4(H) mm |
| ring opening | 177.4(W)×107.8(H) mm |
| omtrek grootte | 190.8(W)×120.5(H) ×16.2(D) mm |
| oppervlak | - |
| helderheid | 1200 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Max.)(Tr+Td) |
| kleure vertoon | 16.7M 70% NTSC |
| tipe lamp | WLED , 100K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 275g (Typ.) |
| aansoek | Industrial Outdoor High Brightness Automotive Display |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
