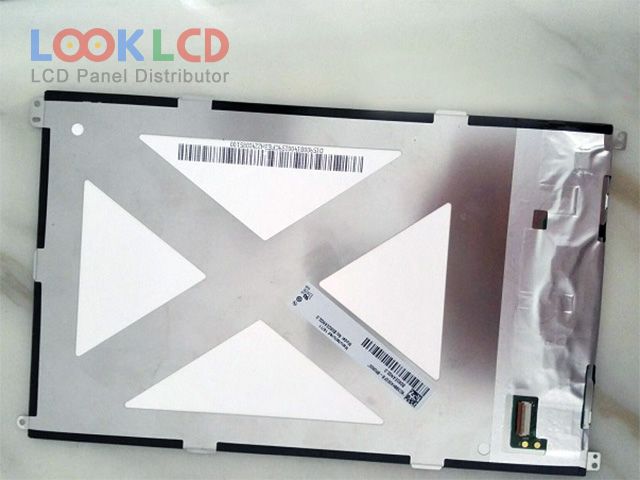

| Onderdeel nommer | B080EAN02.0 |
| Handelsmerk | AUO |
| Grootte | 8.0 |
| Toepassing | PAD |
| Resolusie | 800×1280 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| paneel handelsmerk | AUO |
| paneel model | B080EAN02.0 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 8.0 inch |
| resolusie | 800(RGB)×1280 , WXGA |
| vertoonmodus | AHVA, Normally Black, Transmissive |
| aktiewe area | 107.64×172.224 mm |
| buitelyn | 114.8×184.7×4.56 mm |
| oppervlak | Hard coating, Antireflection |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193158% |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6S3PWLEDWithout Driver |
| sein koppelvlak | MIPI (4 data lanes), 31 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | PAD |
