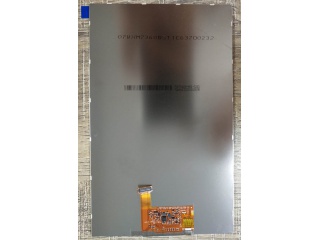

| Onderdeel nommer | TV070WXM-NS0 |
| Handelsmerk | BOE |
| Grootte | 7.0 |
| Toepassing | Pad & Tablet |
| Resolusie | 800×1280 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | 5S4P |
| Koppelvlak | MIPI |
| vervaardiger | BOE |
| model naam | TV070WXM-NS0 |
| skerm grootte | 7.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 800(RGB)×1280 (WXGA) 215PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 94.2 × 150.72 (H×V) |
| buitelyn (mm) | 99.7 × 160.93 × 3.8 (H×V×D) |
| ring area (mm) | - |
| behandeling | Hard coating (3H), Antireflection |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 900 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | ADS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 50% NTSC |
| agterlig | 5S4P WLED , 20K hours , No Driver |
| massa | 74.5g (Typ.) |
| gebruik vir | Pad & Tablet |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | MIPI (4 data lanes) , 34 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -20 ~ 60 °C |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| HV070WS1-101 | HYDIS | 7.0 | 1024×600 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
