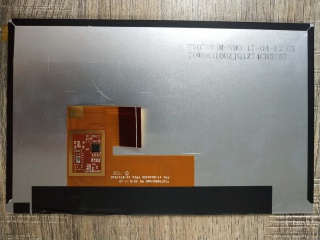

| Onderdeel nommer | TV070WSM-NM0 |
| Handelsmerk | BOE |
| Grootte | 7.0 |
| Toepassing | Pad & Tablet |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| paneel handelsmerk | BOE |
| paneel model | TV070WSM-NM0 |
| paneel grootte | 7.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1024(RGB)×600, WSVGA, 169PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 153.6(W)×90(H) mm |
| ring opening | - |
| omtrek grootte | 161.16(W)×100.97(H) ×4.8(D) mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 16.7M 50% NTSC |
| tipe lamp | WLED , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 90.0g (Max.) |
| aansoek | Pad & Tablet |
| sein koppelvlak | MIPI (4 data lanes) , 40 pins Connector |
| insetspanning | 1.8/3.3/9/19/-7V (Typ.)(VDD1/VDD3/AVDD/VGH/VGL) |
| omgewing | Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -40 ~ 85 °C |
