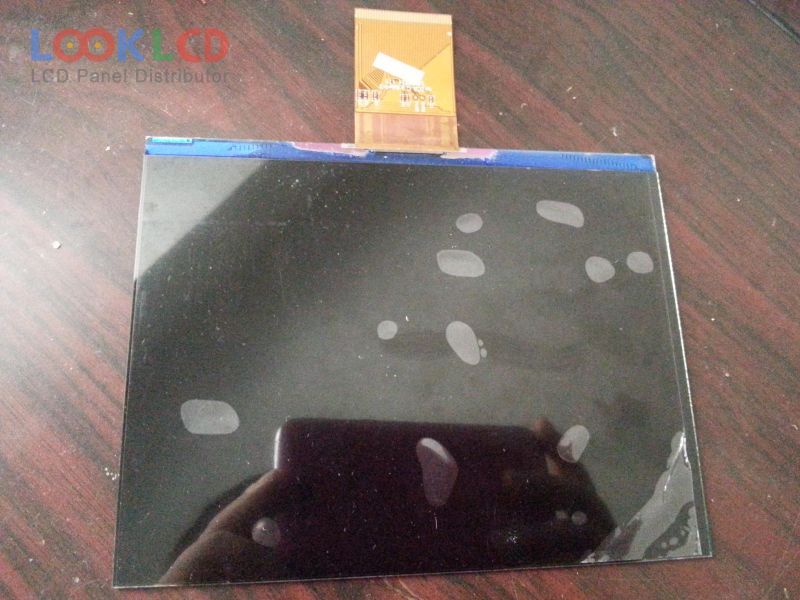

| Onderdeel nommer | A070SN02 V0 CELL |
| Handelsmerk | AUO |
| Grootte | 7.0 |
| Toepassing | DPF |
| Resolusie | 800×600 |
| Samestelling | CELL |
| Helderheid | 0 |
| CR | 500:1 |
| Kleure | 16.2M |
| Agterlig | No B/L |
| Koppelvlak | TTL |
| paneel handelsmerk | AUO |
| paneel model | A070SN02 V0 CELL |
| paneel tipe | a-Si TFT-LCD , CELL |
| paneel grootte | 7.0 inch |
| resolusie | 800×600(RGB) , SVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 141.6×106.2 mm |
| buitelyn | 150×116.5 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| glas diepte | 0.50+0.50 mm |
| deurlaatbaarheid | 4.11% (Typ.)(with Polarizer) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 16.2M (6-bit + Dithering), CIE193150% |
| reaksie tyd | 12/18 (Typ.)(Tr/Td) |
| kykhoek | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| sein koppelvlak | TTL (1 ch, 8-bit) + SPI, 60 pins |
| insetspanning | 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL) |
| aansoek | DPF |
