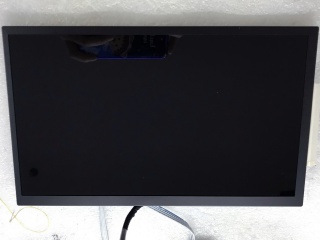

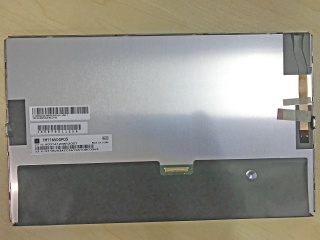

| Onderdeel nommer | TM116VDSP03 |
| Handelsmerk | TIANMA |
| Grootte | 11.6 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | 9S6P |
| Koppelvlak | LVDS |
| vervaardiger | TIANMA |
| model naam | TM116VDSP03 |
| skerm grootte | 11.6 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 190PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 256.32 × 144.18 (H×V) |
| buitelyn (mm) | 273.5 × 166.5 × 11.5 (H×V×D) |
| ring area (mm) | 259.31 × 148.73 (H×V) |
| behandeling | Hard coating |
| helderheid | 1000 cd/m² (Typ.) |
| kontras verhouding | 900 : 1 (Typ.) (TM) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | SFT, Normally Black, Transmissive |
| kleurdiepte | 16.7M 70% NTSC |
| agterlig | 9S6P WLED , 50K hours , No Driver |
| massa | TBD |
| gebruik vir | Industrial Outdoor High Brightness |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (2 ch, 8-bit) , 30 pins Connector |
| spanningstoevoer | 3.3/10.7/20/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| maks. graderings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
