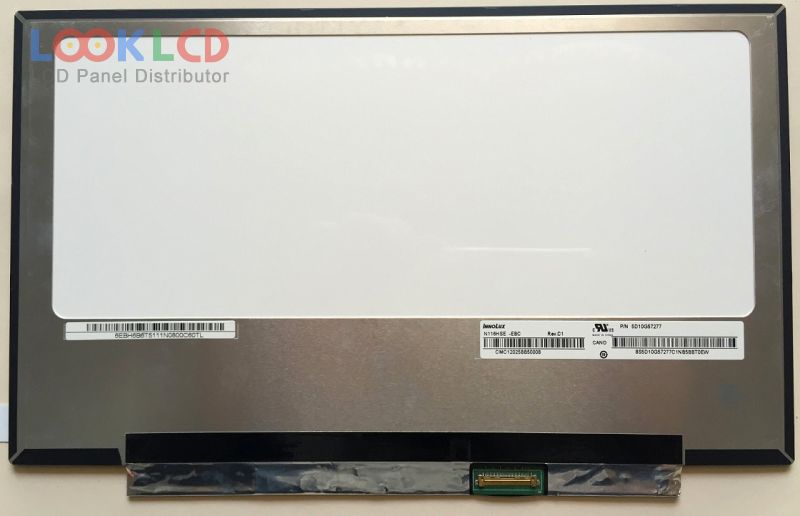

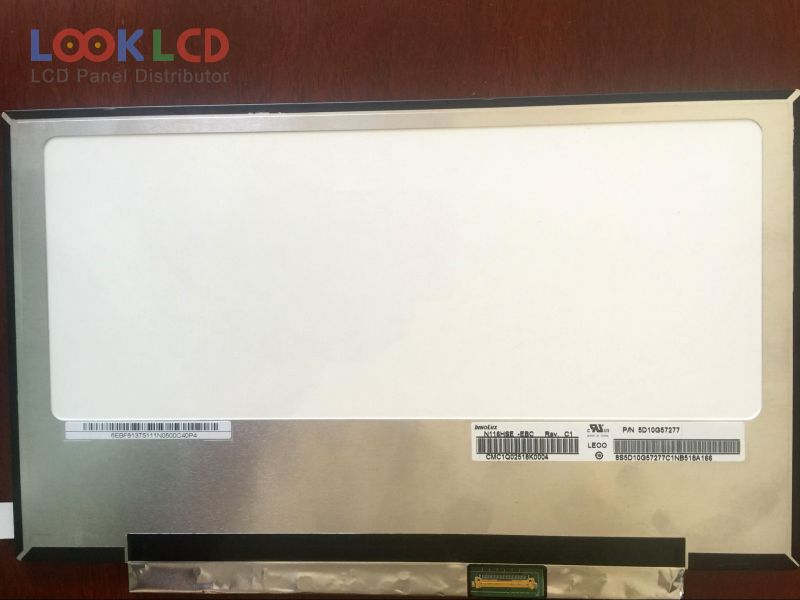

| Onderdeel nommer | N116HSE-EBC |
| Handelsmerk | Innolux |
| Grootte | 11.6 |
| Toepassing | NBPC |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 300 |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | INNOLUX |
| paneel model | N116HSE-EBC |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 11.6 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | AAS, Normally Black, Transmissive |
| aktiewe area | 256.32×144.18 mm |
| buitelyn | 268×168×3 mm |
| vorm styl | Slim (PCBA Flat, Depth ≤3.2mm) |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193150% |
| reaksie tyd | 14/11 (Typ.)(Tr/Td) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | eDP (2 Lanes), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
