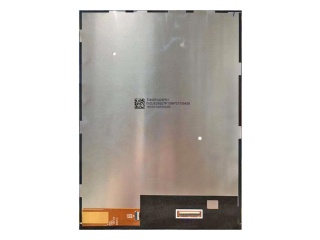

| Onderdeel nommer | TM097QDSP01 |
| Handelsmerk | TIANMA |
| Grootte | 9.7 |
| Toepassing | Pad & Tablet |
| Resolusie | 1536×2048 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 6S6P |
| Koppelvlak | MIPI |
| vervaardiger | TIANMA |
| model naam | TM097QDSP01 |
| skerm grootte | 9.7 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1536(RGB)×2048 (QXGA) 264PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 147.456 × 196.608 (H×V) |
| buitelyn (mm) | 154.016 × 207.83 × 3.75 (H×V×D) |
| ring area (mm) | - |
| behandeling | Hard coating |
| helderheid | 460 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | SFT, Normally Black, Transmissive |
| kleurdiepte | 16.7M 72% NTSC |
| agterlig | 6S6P WLED , No Driver |
| massa | 110g (Typ.) |
| gebruik vir | Pad & Tablet |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | MIPI (2 ch, 4 data lanes) , 61 pins Connector |
| spanningstoevoer | 1.8/5.0/-5.0V (Typ.)(VDDI/AVDD/AVEE) |
| maks. graderings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
