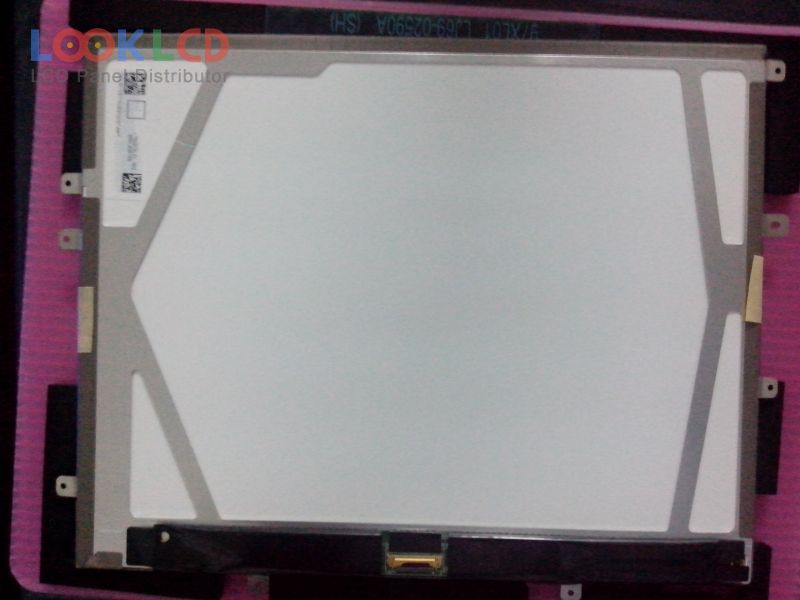

| Onderdeel nommer | LTN097XL01-A01 |
| Handelsmerk | Samsung |
| Grootte | 9.7 |
| Toepassing | PAD |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 390 |
| CR | 900:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTN097XL01-A01 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 9.7 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | PLS, Normally Black, Transmissive |
| aktiewe area | 196.608×147.456 mm |
| buitelyn | 210×166.2 mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 390 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193152% |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | PAD |
