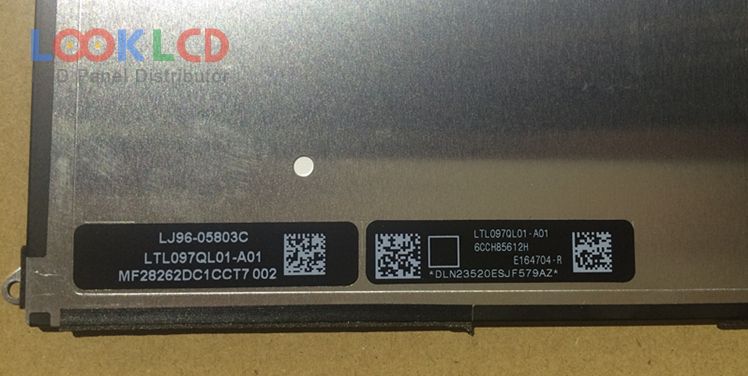

| Onderdeel nommer | LTL097QL01-A01 |
| Handelsmerk | Samsung |
| Grootte | 9.7 |
| Toepassing | PAD |
| Resolusie | 2048×1536 |
| Samestelling | LCM |
| Helderheid | 420 |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTL097QL01-A01 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 9.7 inch |
| resolusie | 2048(RGB)×1536 , QXGA |
| vertoonmodus | PLS, Normally Black, Transmissive |
| aktiewe area | 196.608×147.456 mm |
| oppervlak | |
| helderheid | 420 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit) |
| reaksie tyd | 16 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLED |
| sein koppelvlak | eDP (4 Lanes) |
| insetspanning | 3.3V (Typ.) |
| aansoek | PAD |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPA2 | LG Display | 9.7 | 2048×1536 |
| LP097QX1-SPC1 | LG Display | 9.7 | 2048×1536 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LP097X02-SLG4 | LG Display | 9.7 | 1024×768 |
| LQ097L1JY01 | SHARP | 9.7 | 2048×1536 |
| LTL097QL01-A01 | Samsung | 9.7 | 2048×1536 |
| LTL097QL01-W01 | Samsung | 9.7 | 2048×1536 |
| LTN097XL01-A02 | Samsung | 9.7 | 1024×768 |
| TV097X0M-NS0 | BOE | 9.7 | 768×1024 |
| AMS767KC04-1 | Samsung | 7.7 | 1280×800 |
| B116XAN03.0 HW3A | AUO | 11.6 | 1366×768 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| HSD101PUW1-A00 | HannStar | 10.1 | 1920×1200 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| LC104S1-A1 | LG Display | 10.4 | 800×600 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
