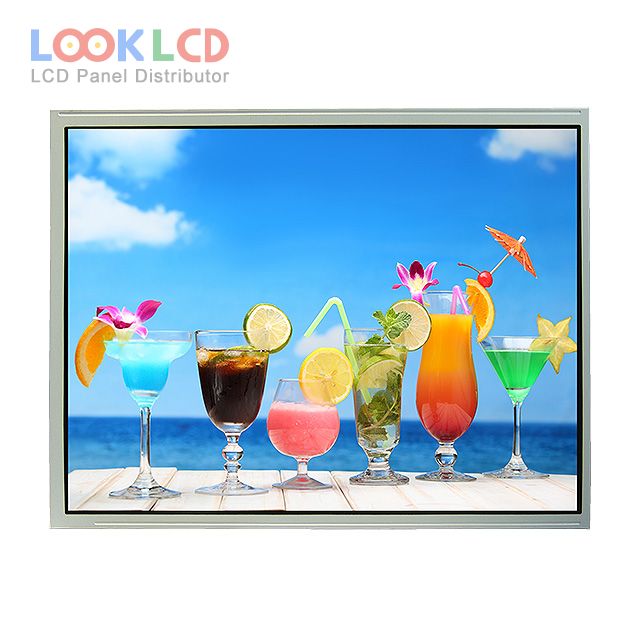

| Onderdeel nommer | TCG121XGLPAPNN-AN20 |
| Handelsmerk | Kyocera |
| Grootte | 12.1 |
| Toepassing | IA |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 400 |
| CR | 750:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | Kyocera |
| paneel model | TCG121XGLPAPNN-AN20 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 12.1 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | AWV, Normally Black, Transmissive |
| aktiewe area | 245.76×184.32 mm |
| buitelyn | 260.5×203.4×10.8 mm |
| oppervlak | Antiglare |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 750:1 (Typ.) |
| kleure vertoon | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| reaksie tyd | 18/12 (Typ.)(Tr/Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6/8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
| AA121SK26 | Mitsubishi | 12.1 | 800×600 |
| B121EW10 V1 | AUO | 12.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| LTM121SI-T01 | Samsung | 12.1 | 800×600 |
| LTN121W4-L01 | Samsung | 12.1 | 1280×800 |
| MAA121DSK26 | Mitsubishi | 12.1 | 800×600 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| TCG121WXLPAPNN-AN20 | Kyocera | 12.1 | 1280×800 |
| TCG121XGLPAPNN-AN20 | Kyocera | 12.1 | 1024×768 |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA084XE11 | Mitsubishi | 8.4 | 1024×768 |
| AM-640480G4TNQW-T01H | AMPIRE | 5.7 | 640×480 |
| KG057QV1CA-G020 | Kyocera | 5.7 | 320×240 |
| LQ104V1DG5A | SHARP | 10.4 | 640×480 |
| LQ104V1DW02 | SHARP | 10.4 | 640×480 |
| LT121EE01000 | TOSHIBA | 12.1 | 1280×800 |
| PD104SLD | E Ink | 10.4 | 800×600 |
| PD121XL3 | E Ink | 12.1 | 1024×768 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
