{{handelsmerk}} TCG121XGLPAPNN-AN20-S datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

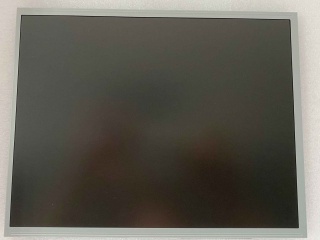

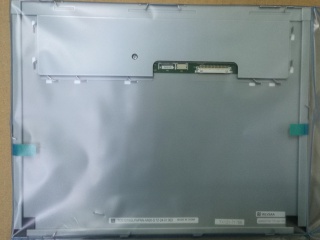

TCG121XGLPAPNN-AN20-S

TCG121XGLPAPNN-AN20-S
TCG121XGLPAPNN-AN20-S
TCG121XGLPAPNN-AN20-S thumb TCG121XGLPAPNN-AN20-S thumb
Handelsmerk
Kyocera
Grootte
12.1
Toepassing
Industrial
Resolusie
1024×768
Samestelling
a-Si TFT-LCD, LCM
Helderheid
CR
750:1
Kleure
262K/16.2M
Agterlig
WLED
Koppelvlak
LVDS
In Stock
5125
Spesifikasies

Onderdeel nommer TCG121XGLPAPNN-AN20-S
HandelsmerkKyocera
Grootte12.1
ToepassingIndustrial
Resolusie1024×768
Samestellinga-Si TFT-LCD, LCM
Helderheid
CR750:1
Kleure262K/16.2M
AgterligWLED
KoppelvlakLVDS
handelsmerkKyocera
modelTCG121XGLPAPNN-AN20-S
diagonale grootte12.1 inch
tipea-Si TFT-LCD, LCM
pixel formaat1024(RGB)×768  [XGA]  105PPI
konfigurasieRGB Vertical Stripe
aktiewe area245.76(H)×184.32(V) mm
buitelyn dof.260.5(H)×203.4(V) ×10.8(D) mm
ring area249.0(H)×187.5(V) mm
behandelingAntiglare
helderheid500 cd/m² (Typ.)
kontras verhouding750:1 (Typ.) (TM)
kyk rigtingSymmetry
reaksie tyd18/12 (Typ.)(Tr/Td)
kykhoek85/85/85/85 (Typ.)(CR≥10)
bedryfsmodusAWV, Normally Black, Transmissive
ondersteun kleur262K/16.2M   50% NTSC
LigbronWLED , 50K hours , With LED Driver
gewig670g
ontwerp virIndustrial
raamkoers60Hz
raakpaneelWithout
koppelvlak tipeLVDS (1 ch, 6/8-bit) , 20 pins Connector
kragtoevoer3.3V (Typ.)
omgewingOperating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
