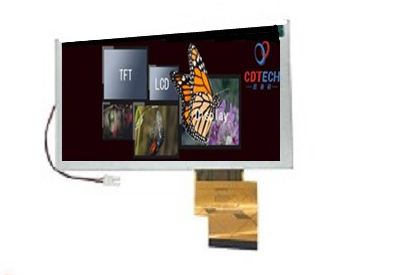

| Onderdeel nommer | S062WV04 |
| Handelsmerk | CDTECH |
| Grootte | 6.2 |
| Toepassing | Industrial Automotiv |
| Resolusie | 800×480 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 600:1 |
| Kleure | 16.7M |
| Agterlig | 3S9P |
| Koppelvlak | |
| vervaardiger | CDTECH |
| skerm grootte | 6.2 inch |
| pixel nommer | 800(RGB)×480 (WVGA) 150PPI |
| aktiewe area (mm) | 137.52 × 77.232 (H×V) |
| ring area (mm) | 140.7 × 80.4 (H×V) |
| helderheid | 600 (Typ.)(cd/m²) |
| kykhoek | 65/65/55/65 (Typ.)(CR≥10) |
| goeie uitsig by | - |
| kleurdiepte | 16.7M |
| massa | TBD |
| herlaaitempo | 60Hz |
| model naam | S062WV04 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| behandeling | - |
| kontras verhouding | 600 : 1 (Typ.) (TM) |
| werksmodus | TN, Normally White, Transmissive |
| reaksie | 30/30 (Typ.)(Tr/Td) ms |
| agterlig | 3S9P WLED , 25K hours , No Driver |
| gebruik vir | Industrial Automotive Display |
| raakskerm | Without |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
