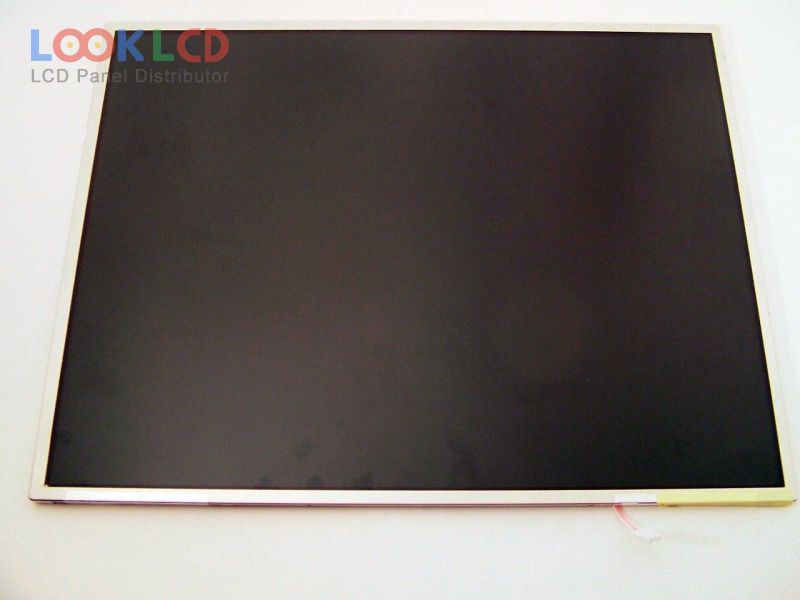

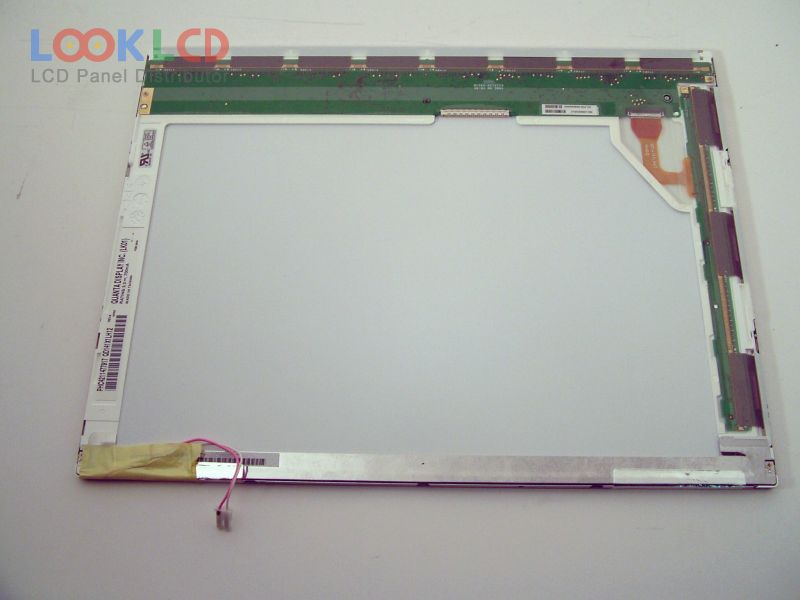

| Onderdeel nommer | QD141X1LH12 Rev.A |
| Handelsmerk | QDI |
| Grootte | 14.1 |
| Toepassing | NBPC |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 160 |
| CR | 300:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | QDI |
| paneel model | QD141X1LH12 Rev.A |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 14.1 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 285.696×214.272 mm |
| buitelyn | 299×228×5.5 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Antiglare, Hard coating (3H), Reflection 5.0% (Max.) |
| helderheid | 160 cd/m² (Typ.) |
| kontras verhouding | 300:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 12.5/22.5 (Typ.)(Tr/Td) |
| kykhoek | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFL |
| sein koppelvlak | LVDS (1 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
