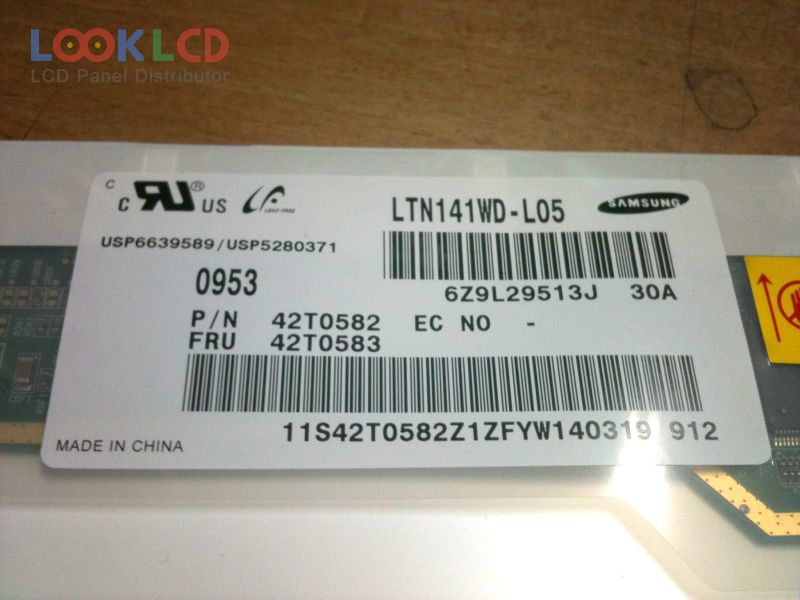

| Onderdeel nommer | LTN141WD-L05 |
| Handelsmerk | Samsung |
| Grootte | 14.1 |
| Toepassing | NBPC |
| Resolusie | 1440×900 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 300:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTN141WD-L05 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 14.1 inch |
| resolusie | 1440(RGB)×900 , WXGA+ |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 303.48×189.675 mm |
| buitelyn | 319.5×205.5×5.5 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Antiglare (Haze 42%), Hard coating (2H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 300:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| LTN141AT09-301 | Samsung | 14.1 | 1280×800 |
| LTN141AT12-J01 | Samsung | 14.1 | 1280×800 |
| LTN141AT16-001 | Samsung | 14.1 | 1280×800 |
| LTN141AT16-B03 | Samsung | 14.1 | 1280×800 |
| LTN141BT01-004 | Samsung | 14.1 | 1440×900 |
| LTN141BT08-001 | Samsung | 14.1 | 1440×900 |
| LTN141W1-L02 | Samsung | 14.1 | 1280×800 |
| LTN141W1-L09-1 | Samsung | 14.1 | 1280×800 |
| LTN141X8-L02 | Samsung | 14.1 | 1024×768 |
| B170PW03 V5 | AUO | 17.0 | 1440×900 |
| CLAA156WA15A | CPT | 15.6 | 1366×768 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LP125WF2-SPB1 | LG Display | 12.5 | 1920×1080 |
| LP133X7-P2IB | LG Display | 13.3 | 1024×768 |
| LP141WX3-TLN1 | LG Display | 14.1 | 1280×800 |
| LTN106W2-L01 | Samsung | 10.6 | 1280×768 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
| N141X6-L01 | Innolux | 14.1 | 1024×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
