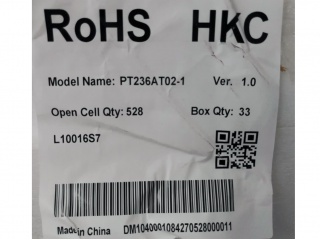

| Onderdeel nommer | PT236AT02-1 |
| Handelsmerk | HKC |
| Grootte | 23.6 |
| Toepassing | TV Sets |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| paneel handelsmerk | HKC |
| paneel grootte | 23.6" |
| resolusie | 1366(RGB)×768, WXGA, 66PPI |
| vertoon area | 521.471(W)×293.184(H) mm |
| omtrek grootte | 535.471(W)×306.404(H) ×1.37(D) mm |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| glas diepte | 0.50+0.50 mm |
| kleure vertoon | 16.7M 71% NTSC |
| frekwensie | 60Hz |
| bestuurder ic | COF Built-in 2 source + 2 gate chips |
| paneel gewig | 500g (Typ.) |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 30 pins Connector |
| insetspanning | 12.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneel model | PT236AT02-1 |
| paneel tipe | a-Si TFT-LCD , CELL |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare (Haze 3%), Hard coating (3H) |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| vertoonmodus | FSA, Normally Black, Transmissive |
| reaksie tyd | 9.5 (Typ.)(G to G) |
| deurlaatbaarheid | 5.8% (Typ.)(with Polarizer) |
| tipe lamp | No B/L |
| raakskerm | Without |
| aansoek | TV Sets |
