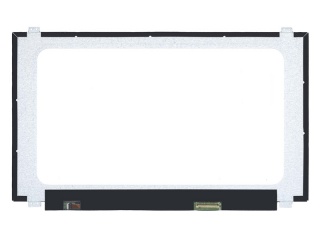

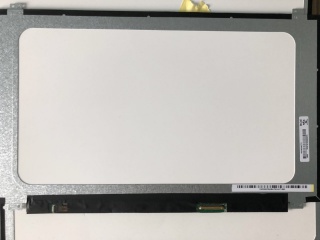

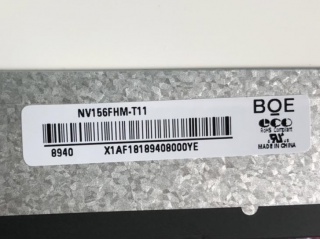

| Onderdeel nommer | NV156FHM-T11 |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , Assem |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | BOE |
| diagonale grootte | 15.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| aktiewe area | 344.16(H)×193.59(V) mm |
| helderheid | - |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteun kleur | 262K |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| raamkoers | 60Hz |
| koppelvlak tipe | eDP (2 Lanes) Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | NV156FHM-T11 |
| tipe | a-Si TFT-LCD , Assembly |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 373.5(H)×236.7(V) ×4.35(D) mm |
| kontras verhouding | 800:1 (Typ.) (TM) |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| bedryfsmodus | - |
| Ligbron | WLED , With LED Driver |
| ontwerp vir | Laptop |
| raakpaneel | On-Cell Touch |
| LP156WF1-TLB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| LTN156AT34-D01 | Samsung | 15.6 | 1366×768 |
| N156BGE-E42 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
