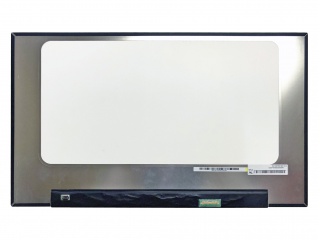

| Onderdeel nommer | NV156FHM-N63 |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | 11S4P |
| Koppelvlak | eDP |
| vervaardiger | BOE |
| model naam | NV156FHM-N63 (BOE07D8) 4 Compatible |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| buitelyn (mm) | 350.46 × 206.25 × 4.6 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 800 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | HADS, Normally Black, Transmissive |
| kleurdiepte | 262K 72% NTSC |
| agterlig | 11S4P WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Bent, T≤3.0mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
