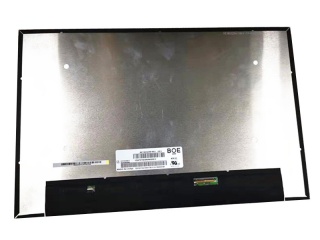

| Onderdeel nommer | NV156FHM-N4X |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop Gaming |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | BOE |
| model | NV156FHM-N4X (BOE09CA) |
| diagonale grootte | 15.6 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 344.16(H)×193.59(V) mm |
| buitelyn dof. | 350.66(H)×216.15(V) ×3.2(D) mm |
| ring area | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| ondersteun kleur | 262K 45% NTSC |
| Ligbron | WLED [10S4P] , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| ontwerp vir | Laptop Gaming |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156HT01-B01 | Samsung | 15.6 | 1920×1080 |
| NT156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
