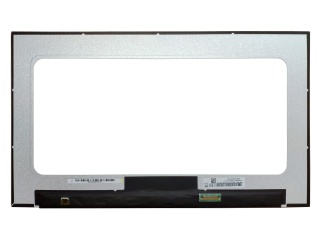

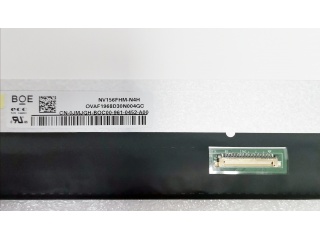

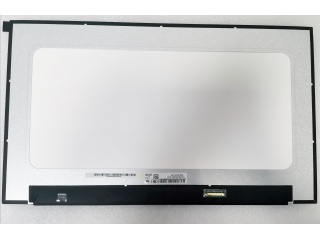

| Onderdeel nommer | NV156FHM-N4H |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | 10S4P |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel model | NV156FHM-N4H (BOE0869) 2 Compatible |
| paneel grootte | 15.6" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1920(RGB)×1080, FHD, 141PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 344.16(W)×193.59(H) mm |
| ring opening | - |
| omtrek grootte | 350.66(W)×205.69(H) ×5.4(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 700:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 45% NTSC |
| tipe lamp | 10S4P WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Bent, T≤3.0mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
